WS512K32V - 512K x 32 SRAM 3.3V MODULE

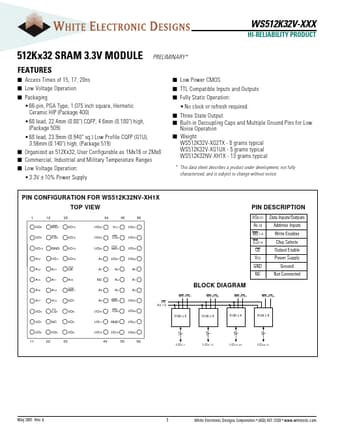

WS512K32V Datasheet Preview — Preview of WS512K32V PDF

Datasheet Details

Part number	WS512K32V
Manufacturer	ETC
File Size	128.03 KB
Description	512K x 32 SRAM 3.3V MODULE
Datasheet	WS512K32V_ETC.pdf

WS512K32V Product details

Description

I/O0-31 A0-18 WE1-4 CS1-4 I/O29 I/O28 A0 A1 A2 WE1 CS 1 Data Inputs/Outputs Address Inputs Write Enables Chip Selects Output Enable Power Supply Ground Not Connected OE VCC GND NC BLOCK DIAGRAM WE2 CS2 WE3 CS 3 WE 4CS4 OE A0-18 512K x 8 512K x 8 I/O23 I/O22 512K x 8 512K x 8 I/O21 I/O20 66 I/O0-7 I/O8-15 I/O16-23 I/O24-31 8 8 8 8 May 2001 Rev.6 1 White Electronic Designs Corporation (602) 437-1520 www.whiteedc.com WS512K32V-XXX PIN CONFIGURATION FOR WS512K32V-XG2

Features

s Access Times of 15, 17, 20ns s Low Voltage Operation s Packaging.
66-pin, PGA Type, 1.075 inch square, Hermetic Ceramic HIP (Package 400).
68 lead, 22.4mm (0.88") CQFP, 4.6mm (0.180") high, (Package 509).
