WT6014 - Digital Monitor Controller

Description

The WT6014 is a member of WT60XX microcontroller family.

It is specially designed for digital controlled multi-sync monitor.

It contains 8-bit CPU, 4K bytes ROM, 128 bytes RAM, 14 PWMs, parallel I/O, SYNC processor, timer, DDC interface (slave mode I2C interface with DDC1), and watch-dog timer.

Features

  • 8-bit 6502 compatible CPU, 4MHz operating frequency.
  • 4096 bytes ROM, 128 bytes SRAM.
  • 8MHz crystal oscillator.
  • 14 channels 8-bit/62.5kHz PWM outputs (8 open drain outputs & 6 CMOS outputs).
  • Sync signal processor with sync separation, frequency calculation, H/V polarity detection control.
  • DDC interface supports VESA DDC1/DDC2B standard.
  • Watch-dog timer (0.524 second).
  • Maximum 22 programmable I/O pins.
  • One 8-bit programmable timer.
  • One external int.

📥 Download Datasheet

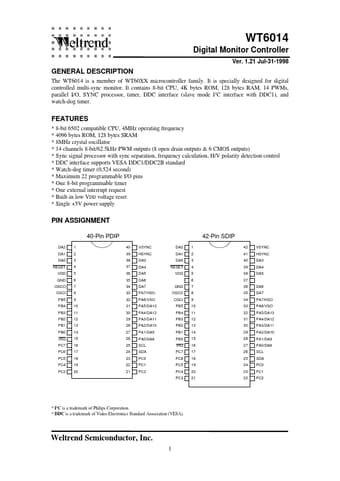

Datasheet preview – WT6014

Datasheet Details

Part number WT6014
Manufacturer ETC
File Size 436.10 KB
Description Digital Monitor Controller
Datasheet download datasheet WT6014 Datasheet
Additional preview pages of the WT6014 datasheet.

📁 Similar Datasheet

  • WT6002 - Active Diode Driver IC (W2 Technology)
  • WT6003 - Active Diode Driver IC (W2 Technology)
  • WT6148 - (WT6148 / WT6160) Digital Monitor Controller (Weitrend)
  • WT6160 - (WT6148 / WT6160) Digital Monitor Controller (Weitrend)
  • WT61P4 - Embedded Micro Controller (Weltrend)
  • WT61P6 - Embedded Micro-Controller (Weltrend)
  • WT61P8 - Flat Panel Display Control Sub-MCU (Weltrend)
  • WT6248 - Digital Monitor Controller (Weltrend)
  • WT62P2 - Micro-controller (Weltrend Semiconductor)
  • WT6401 - P-Channel Enhancement Mode Power MOSFET (Weitron Technology)
Other Datasheets by ETC
  • WT6016 - Digital Monitor Controller
  • WT6018 - Digital Monitor Controller
  • WT60P1 - Digital Monitor Controller
  • WT6116 - microcontroller for digital controlled monitor
  • WT6124 - microcontroller for digital controlled monitor
  • WT6132 - microcontroller for digital controlled monitor
  • WT62P1 - microcontroller for digital controlled monitor with Universal Serial Bus (USB) interface
  • WT6510 - WT6510 USB KEYBOARD CONTROLLER

Full PDF Text Transcription

Click to expand full text
WT6014 Digital Monitor Controller Ver. 1.21 Jul-31-1998 GENERAL DESCRIPTION The WT6014 is a member of WT60XX microcontroller family. It is specially designed for digital controlled multi-sync monitor. It contains 8-bit CPU, 4K bytes ROM, 128 bytes RAM, 14 PWMs, parallel I/O, SYNC processor, timer, DDC interface (slave mode I2C interface with DDC1), and watch-dog timer. FEATURES * 8-bit 6502 compatible CPU, 4MHz operating frequency * 4096 bytes ROM, 128 bytes SRAM * 8MHz crystal oscillator * 14 channels 8-bit/62.5kHz PWM outputs (8 open drain outputs & 6 CMOS outputs) * Sync signal processor with sync separation, frequency calculation, H/V polarity detection control * DDC interface supports VESA DDC1/DDC2B standard * Watch-dog timer (0.
