WT6016 - Digital Monitor Controller

Description

The WT6016 is a member of WT60XX microcontroller family.

It is specially designed for digital controlled multi-sync monitor.

Features

  • 8-bit 6502 compatible CPU, 4MHz operating frequency.
  • 16384 bytes ROM, 288 bytes SRAM.
  • 8MHz crystal oscillator.
  • 14 channels 8-bit/62.5kHz PWM outputs (8 open drain outputs & 6 CMOS outputs).
  • Sync signal processor with H+V separation, frequency calculation, H/V polarity detection/control.
  • Three free-running sync signal outputs for burn-in test (64kHz/62.5Hz, 48kHz/75Hz, 31kHz/60Hz).
  • Self-test pattern generator generates cross hatch picture.
  • DDC interface su.

📥 Download Datasheet

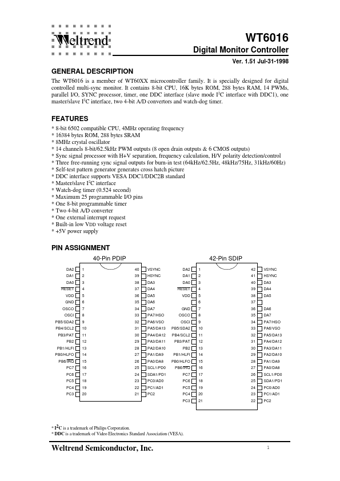

Datasheet preview – WT6016

Datasheet Details

Part number WT6016
Manufacturer ETC
File Size 567.95 KB
Description Digital Monitor Controller
Datasheet download datasheet WT6016 Datasheet
Additional preview pages of the WT6016 datasheet.

📁 Similar Datasheet

  • WT6002 - Active Diode Driver IC (W2 Technology)
  • WT6003 - Active Diode Driver IC (W2 Technology)
  • WT6148 - (WT6148 / WT6160) Digital Monitor Controller (Weitrend)
  • WT6160 - (WT6148 / WT6160) Digital Monitor Controller (Weitrend)
  • WT61P4 - Embedded Micro Controller (Weltrend)
  • WT61P6 - Embedded Micro-Controller (Weltrend)
  • WT61P8 - Flat Panel Display Control Sub-MCU (Weltrend)
  • WT6248 - Digital Monitor Controller (Weltrend)
  • WT62P2 - Micro-controller (Weltrend Semiconductor)
  • WT6401 - P-Channel Enhancement Mode Power MOSFET (Weitron Technology)
Other Datasheets by ETC
  • WT6014 - Digital Monitor Controller
  • WT6018 - Digital Monitor Controller
  • WT60P1 - Digital Monitor Controller
  • WT6116 - microcontroller for digital controlled monitor
  • WT6124 - microcontroller for digital controlled monitor
  • WT6132 - microcontroller for digital controlled monitor
  • WT62P1 - microcontroller for digital controlled monitor with Universal Serial Bus (USB) interface
  • WT6510 - WT6510 USB KEYBOARD CONTROLLER

Full PDF Text Transcription

Click to expand full text
WT6016 Digital Monitor Controller Ver. 1.51 Jul-31-1998 GENERAL DESCRIPTION The WT6016 is a member of WT60XX microcontroller family. It is specially designed for digital controlled multi-sync monitor. It contains 8-bit CPU, 16K bytes ROM, 288 bytes RAM, 14 PWMs, parallel I/O, SYNC processor, timer, one DDC interface (slave mode I2C interface with DDC1), one master/slave I2C interface, two 4-bit A/D convertors and watch-dog timer. FEATURES * 8-bit 6502 compatible CPU, 4MHz operating frequency * 16384 bytes ROM, 288 bytes SRAM * 8MHz crystal oscillator * 14 channels 8-bit/62.
