ZMCT103C - 5A Range AC Current Transformer Current Sensor

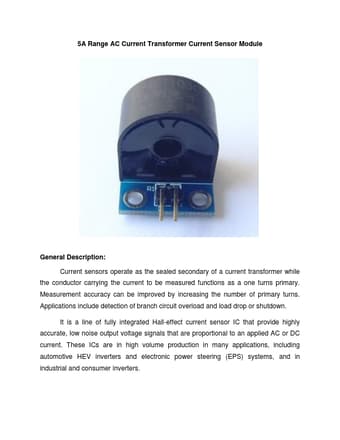

ZMCT103C Datasheet Preview — Preview of ZMCT103C PDF

Datasheet Details

Part number	ZMCT103C
Manufacturer	ETC
File Size	222.22 KB
Description	5A Range AC Current Transformer Current Sensor
Datasheet	ZMCT103C-ETC.pdf

ZMCT103C Product details

Description

Current sensors operate as the sealed secondary of a current transformer while the conductor carrying the current to be measured functions as a one turns primary.Measurement accuracy can be improved by increasing the number of primary turns.Applications include detection of branch circuit overload and load drop or shutdown.It is a line of fully integrated Hall-effect current sensor IC that provide highly accurate, low noise output voltage signals that are proportional to an applied AC or DC

Features

are required. Specifications:.
Onboard precision micro current transformer.
Onboard sampling resistor.
Module can be measured within 5 a alternating current, the corresponding analog output 5 A/ 5 mA.
PCB board size: 18.3 (mm) x17 (mm).
Rated Primary Current at 50/60 Hz: 5 A.
Maximum Primary Current at 50/60 Hz: 20 A.
Turns Ratio: Np:Ns = 1:2,500.
Current Ratio: 5A:2mA.
Winding D. C. Resistance at 20 °C: 155 Ω.
Accuracy.
@RL≤10 Ω: 2%.
