78L05 Positive voltage regulators

📥 Download Datasheet Datasheet Preview Page 1

Description

78LXX .
78LXX is three-terminal positive regulators.

📥 Download Datasheet

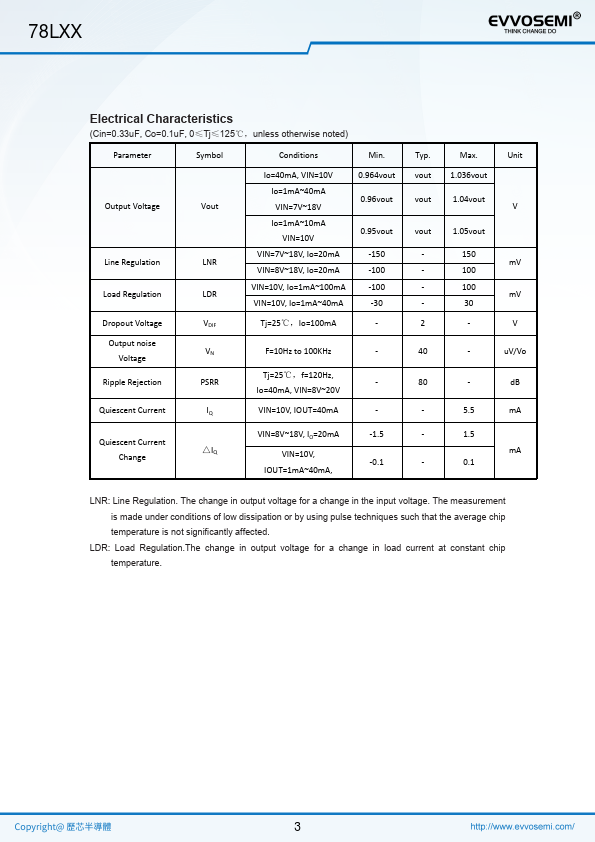

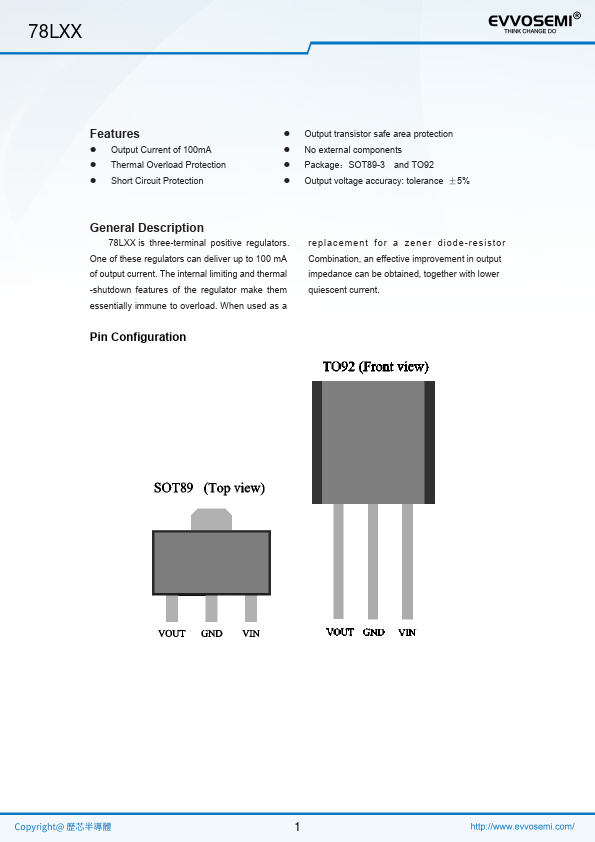

Preview of 78L05 PDF

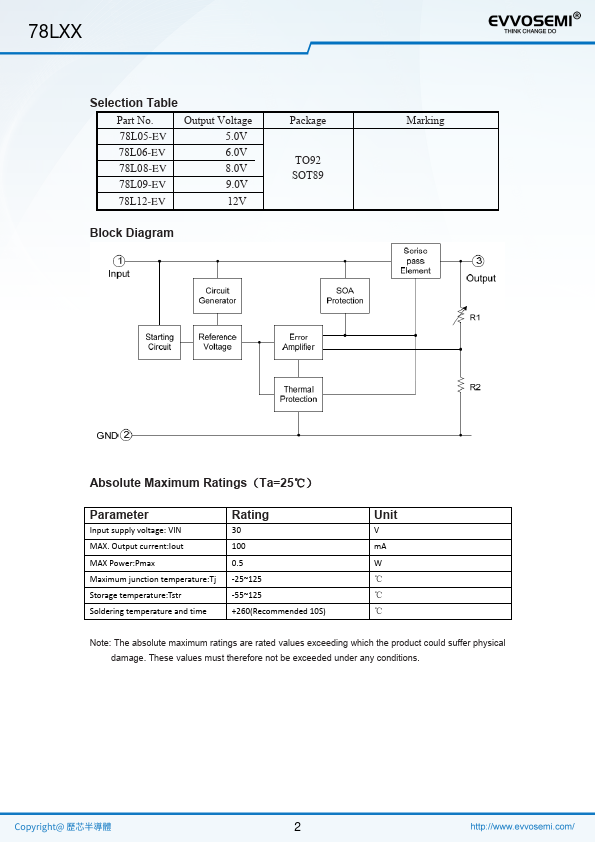

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
78L05
Manufacturer
EVVOSEMI
File Size
912.72 KB
Datasheet
78L05-EVVOSEMI.pdf
Description
Positive voltage regulators

Features

* Output Current of 100mA
* Thermal Overload Protection
* Short Circuit Protection
* Output transistor safe area protection
* No external components
* Packageļ¼šSOT89-3 and TO92

Applications

* compensation capacitors are not required. However, it is recommended that the regulator input be bypassed with a capacitor if the regulator is connected to the power supply filter with long wire lengths, or if the output load capacitance is large. An input bypass capacitor should be selected to pro
