XR-1527A

Pulse-Width Modulating Regulators

XR-1527A Features

* NOR logic, giving a LOW output for an OFF state. The XR-1527AI 2525A13527A series features OR logic, giving a HIGH output for an OFF state. FEATURES 8V to 35V Operation 5.1 V Reference Trimmed to ± 1% 100 Hz to 500 kHz Oscillator Range Separate Oscillator Sync Terminal Adjustable Deadtime Control In

XR-1527A General Description

The XR-1525A11527A is a series of monolithic integrated circuits that contain all of the control circuitry necessary for a pulse-width modulating regulator. Included in the 16-Pin dual-in-line package is a voltage reference, an error amplifier, a pulse-width modulator, an oscillator, under-voltage l.

XR-1527A Datasheet (276.57 KB)

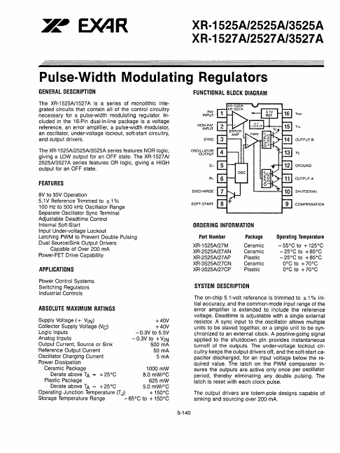

Preview of XR-1527A PDF

Datasheet Details

Part number:

XR-1527A

Manufacturer:

EXAR

File Size:

276.57 KB

Description:

Pulse-width modulating regulators.
