EL2311C Datasheet, Amps, Elantec Semiconductor

EL2311C Features

  • Amps
  • Stable at gain of 2 and 100MHz gain_bandwidth product (EL2211C, EL2311C, & EL2411C)
  • Stable at gain of 1 and 50MHz gain_bandwidth product (EL2210C, EL2310C, & EL2410C

PDF File Details

Part number:

EL2311C

Manufacturer:

Elantec Semiconductor

File Size:

190.01kb

Download:

📄 Datasheet

Description:

Low cost/ dual/ triple and quad video op amps.

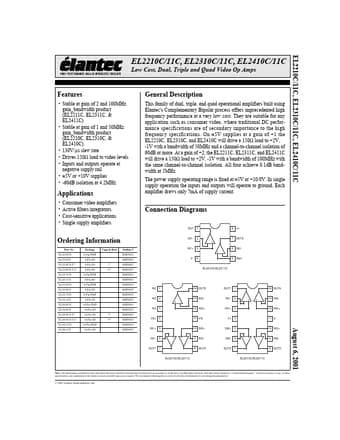

Datasheet Preview: EL2311C 📥 Download PDF (190.01kb)
Page 2 of EL2311C Page 3 of EL2311C

EL2311C Application

  • Applications
  • Consumer video amplifiers
  • Active filters/integrators
  • Cost-sensitive applications
  • Single supply
