EL2386C - 250 MHz Triple Current Feedback Amp w/Disable

Elantec Semiconductor

📥 Download Datasheet

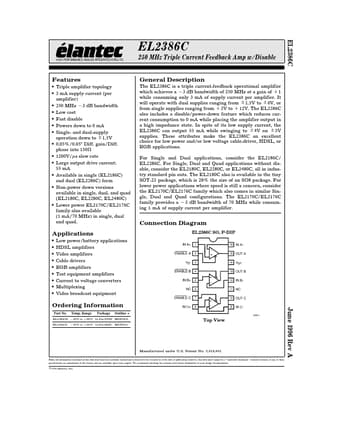

EL2386C Datasheet Preview — Preview of EL2386C PDF

Datasheet Details

Part number	EL2386C
Manufacturer	Elantec Semiconductor
File Size	337.66 KB
Description	250 MHz Triple Current Feedback Amp w/Disable
Datasheet	EL2386C_ElantecSemiconductor.pdf

EL2386C Product details

Description

The EL2386C is a triple current-feedback operational amplifier which achieves a b 3 dB bandwidth of 250 MHz at a gain of a 1 while consuming only 3 mA of supply current per amplifier It will operate with dual supplies ranging from g 1 5V to g 6V or from single supplies ranging from a 3V to a 12V The EL2386C also includes a disable power-down feature which reduces current consumption to 0 mA while placing the amplifier output in a high impedance state In spite of its low supply current the EL2386

Features

Triple amplifier topology 3 mA supply current (per amplifier) 250 MHz b 3 dB bandwidth Low cost Fast disable Powers down to 0 mA Single- and dual-supply operation down to g 1 5V 0 05% 0 05 Diff gain Diff phase into 150X 1200V ms slew rate Large output drive current 55 mA Available in single (EL2186C) and dual (EL2286C) form Non-power down versions available in single dual and quad (EL2180C EL2280C EL2480C) Lower power EL2170C EL2176C family also available (1 mA 70 MHz).
