EL2360C - Triple 130 MHz Current Feedback Amplifier

Elantec Semiconductor

📥 Download Datasheet

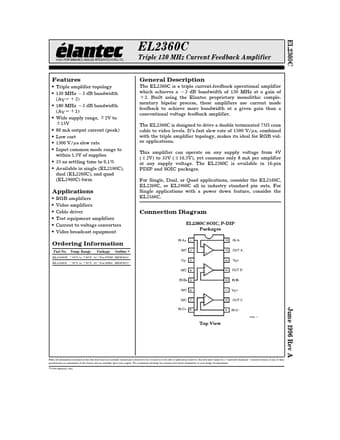

EL2360C Datasheet Preview — Preview of EL2360C PDF

Datasheet Details

Part number	EL2360C
Manufacturer	Elantec Semiconductor
File Size	417.07 KB
Description	Triple 130 MHz Current Feedback Amplifier
Datasheet	EL2360C_ElantecSemiconductor.pdf

EL2360C Product details

Description

The EL2360C is a triple current-feedback operational amplifier which achieves a b 3 dB bandwidth of 130 MHz at a gain of a 2 Built using the Elantec proprietary monolithic complementary bipolar process these amplifiers use current mode feedback to achieve more bandwidth at a given gain than a conventional voltage feedback amplifier The EL2360C is designed to drive a double terminated 75X coax cable to video levels It’s fast slew rate of 1500 V ms combined with the triple amplifier topology makes

Features

Triple amplifier topology 130 MHz b 3 dB bandwidth (AV e a 2) 180 MHz b 3 dB bandwidth (AV e a 1) Wide supply range g 2V to g 15V 80 mA output current (peak) Low cost 1500 V ms slew rate Input common mode range to within 1 5V of supplies 35 ns settling time to 0 1% Available in single (EL2160C) dual (EL2260C) and quad (EL2460C) form General.
