EL5185C, 4ns High-Speed Comparator

EL5185C - Preliminary EL5185C - Preliminary 4ns High-Speed Comparator .
The EL5185C comparator is designed for operation in single supply and dual supply applications with 5V to 12V between VS+ and VS-.

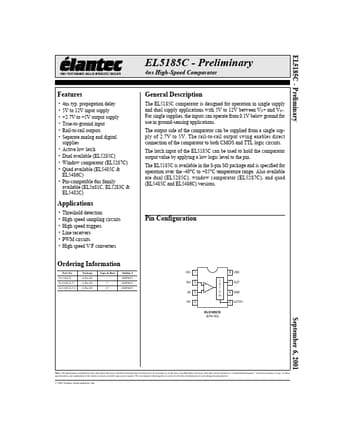

datasheet Preview Page 1 from Datasheet4u.com

EL5185C_ElantecSemiconductor.pdf

EL5185C Datasheet Preview — Preview of EL5185C PDF

Datasheet Details

Part number:

EL5185C

Manufacturer:

Elantec Semiconductor

File Size:

301.18 KB

Description:

4ns High-Speed Comparator

Features

* 4ns typ. propagation delay 5V to 12V input supply +2.7V to +5V output supply True-to-ground input Rail-to-rail outputs Separate analog and digital supplies Active low latch Dual available (E

Applications

* with 5V to 12V between VS+ and VS-. For single supplies, the inputs can operate from 0.1V below ground for use in ground-sensing applications. The output side of the comparator can be supplied from a single supply of 2.7V to 5V. The rail-to-rail output swing enables direct connection of the comparat
