M24L28256DA Datasheet - Elite Semiconductor Memory Technology

2-Mbit (256K x 8) Pseudo Static RAM

M24L28256DA Features

* Advanced low-power architecture

* High speed: 55 ns, 70 ns

* Wide voltage range: 2.7V to 3.3V

* Typical active current: 1 mA @ f = 1 MHz

* Low standby power

* Automatic power-down when deselected www.DataSheet4U.com M24L28256DA 2-Mbit (256K x 8) Pseudo S

M24L28256DA General Description

of read and write modes. Functional Description The M24L28256DA is a high-performance CMOS pseudo static RAM (PSRAM) organized as 256K words by 8 bits. Easy memory expansion is provided by an active LOW Chip Enable( CE 1) and active HIGH Chip Enable ( CE 2),and active LOW Output Enable ( OE ).This .

M24L28256DA Datasheet (254.32 KB)

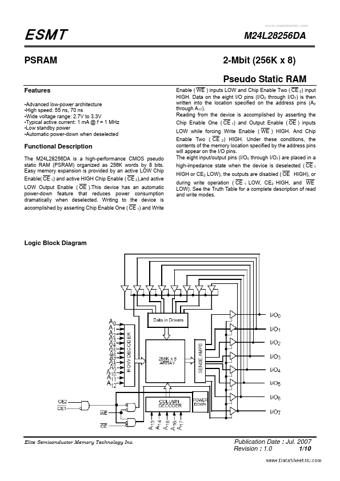

Preview of M24L28256DA PDF

Datasheet Details

Part number:

M24L28256DA

Manufacturer:

Elite Semiconductor Memory Technology

File Size:

254.32 KB

Description:

2-mbit (256k x 8) pseudo static ram.
