F25D08QA - 8 Mbit Serial Flash Memory

Datasheet Summary

Description

The F25D08QA is a 8 Megabit, 1.8V only CMOS Serial Flash memory device.

The device supports the standard Serial Peripheral Interface (SPI), a Dual/Quad SPI and QPI.

ESMT’s memory devices reliably store memory data even after 100,000 programming and erase cycles.

Features

  • S y Single supply voltage 1.65~2V y Speed - Fast Read for SPI mode - Read max frequency: 33MHz - Fast Read max frequency: 104MHz - Fast Read Dual/Quad max frequency: 84MHz/104MHz (168MHz equivalent Dual SPI; 416MHz equivalent Quad SPI) - Fast Read for QPI mode - Fast Read max frequency: 84MHz - Fast Read Quad max frequency: 104MHz (416MHz equivalent Quad QPI) - 8/ 16/ 32/ 64 byte Wrap-Around Burst Read Mode y Low power consumption - Active current: 15mA (typ. ) - Standby current: 30 μ A (typ. ) -.

📥 Download Datasheet

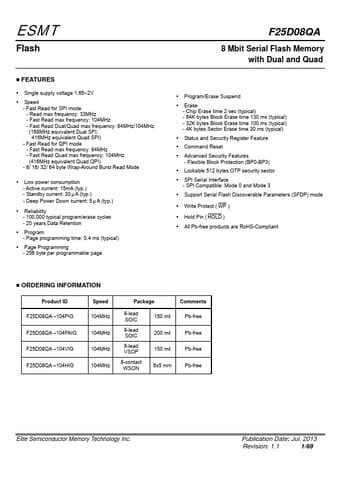

Datasheet preview – F25D08QA

Datasheet Details

Part number F25D08QA
Manufacturer Elite Semiconductor
File Size 621.48 KB
Description 8 Mbit Serial Flash Memory
Datasheet download datasheet F25D08QA Datasheet
Additional preview pages of the F25D08QA datasheet.

📁 Similar Datasheet

Other Datasheets by Elite Semiconductor
  • F25D64QA - 64 Mbit Serial Flash Memory
  • F25L004A - 4Mbit (512Kx8) 3V Only Serial Flash Memory
  • F25L008A - 8Mbit (1Mx8) 3V Only Serial Flash Memory
  • F25L016A - 3V Only Serial Flash Memory
  • F25L01PA - 3V Only 1 Mbit Serial Flash Memory
  • F25L08QA - 8 Mbit Serial Flash Memory
  • F25L16PA - 16 Mbit Serial Flash Memory
  • F25L64QA - 64 Mbit Serial Flash Memory

Full PDF Text Transcription

Click to expand full text
ESMT Flash „ FEATURES y Single supply voltage 1.65~2V y Speed - Fast Read for SPI mode - Read max frequency: 33MHz - Fast Read max frequency: 104MHz - Fast Read Dual/Quad max frequency: 84MHz/104MHz (168MHz equivalent Dual SPI; 416MHz equivalent Quad SPI) - Fast Read for QPI mode - Fast Read max frequency: 84MHz - Fast Read Quad max frequency: 104MHz (416MHz equivalent Quad QPI) - 8/ 16/ 32/ 64 byte Wrap-Around Burst Read Mode y Low power consumption - Active current: 15mA (typ.) - Standby current: 30 μ A (typ.) - Deep Power Down current: 5 μ A (typ.) y Reliability - 100,000 typical program/erase cycles - 20 years Data Retention y Program - Page programming time: 0.
