HB56UW1673E-F - 128MB Buffered EDO DRAM DIMM 16-Mword X 72-bit

Elpida Memory

HB56UW1673E-F Description

HB56UW1673E-F .
The HB 56UW 1673E belongs to 8-byte DI MM (D ual in-line Memory Module) fa mily , and have bee n developed an optimized main memory solution for 4 an.

HB56UW1673E-F Features

* www. DataSheet4U. com
* 168-pin socket type package (Dual lead out)  Lead pitch : 1.27 mm
* Single 3.3 V supply : 3.3 ± 0.3 V
* High speed  Access time: tRAC = 50 ns/60 ns (max)  Access time: tCAC = 18 ns/20 ns (max)
* Low power dissipation  Active mode: 8.46 W/7.1

HB56UW1673E-F Applications

* The HB56UW1673E is a 16 M × 72 Dyna mic R AM Module, mounted 18 piec es of 64-Mbit DR AM (H M5165405) sea led in TS OP pac kage and 2 piec es of 16-bit line drive r sea led in TS SOP pac kage . The HB 56UW 1673E off ers Extende d Da ta Out (ED O) P age Mode as a high spee d ac ce ss mode. An outlin

📥 Download Datasheet

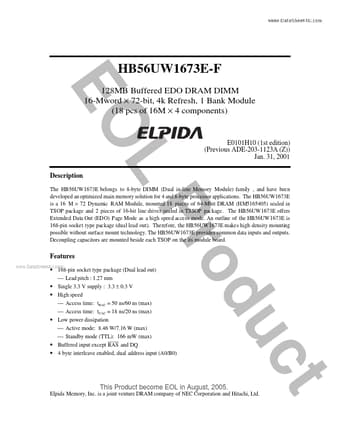

HB56UW1673E-F Datasheet Preview — Preview of HB56UW1673E-F PDF

Datasheet Details

Part number: HB56UW1673E-F
Manufacturer: Elpida Memory
File Size: 256.30 KB
Datasheet: HB56UW1673E-F_ElpidaMemory.pdf
Description: 128MB Buffered EDO DRAM DIMM 16-Mword X 72-bit
