HB56A132BU Datasheet, Module, Hitachi Semiconductor

HB56A132BU Features

• Module
• 72-pin single in-line package
    – Lead pitch: 1.27 mm
• Single 5 V (± 5%) supply
• High speed
    – Access time: 60 ns/70 ns/80 ns (m

PDF File Details

Part number:

HB56A132BU

Manufacturer:

Hitachi Semiconductor

File Size:

80.46kb

Download:

📄 Datasheet

Description:

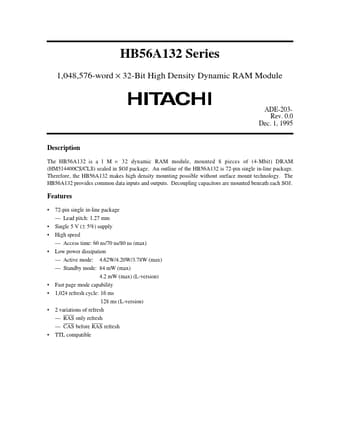

High density dynamic ram module. The HB56A132 is a 1 M × 32 dynamic RAM module, mounted 8 pieces of (4-Mbit) DRAM (HM514400CS/CLS) sealed in SOJ package. An outline o
