HM5257405B-A6

512M LVTTL interface SDRAM 133 MHz/100 MHz 8-Mword 16-bit 4-bank/16-Mword 8-bit 4-bank /32-Mword 4-bit 4-bank PC/133/ PC/100 SDRAM

HM5257405B-A6 Features

* 3.3 V power supply Clock frequency: 133 MHz/100 MHz (max) LVTTL interface Single pulsed RAS 4 banks can operate simultaneously and independently Burst read/write operation and burst read/single write operation capability

HM5257405B-A6 General Description

The HM5257165B is a 512-Mbit SDRAM organized as 8388608-word × 16-bit × 4 bank. The HM5257805B is a 512-Mbit SDRAM organized as 16777216-word × 8-bit × 4 bank. The HM5257405B is a 512-Mbit SDRAM organized as 33554432-word × 4-bit × 4 bank. All inputs and outputs are referred to the rising edge of th.

HM5257405B-A6 Datasheet (463.46 KB)

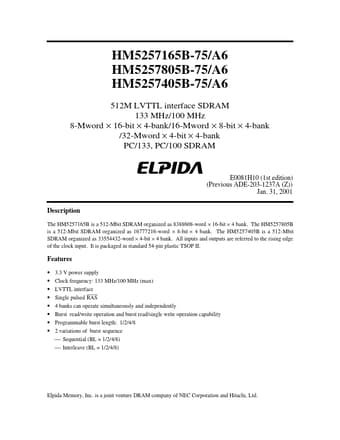

Preview of HM5257405B-A6 PDF

Datasheet Details

Part number:

HM5257405B-A6

Manufacturer:

Elpida Memory

File Size:

463.46 KB

Description:

512m lvttl interface sdram 133 mhz/100 mhz 8-mword 16-bit 4-bank/16-mword 8-bit 4-bank /32-mword 4-bit 4-bank pc/133/ pc/100 sdram.
HM5257165B-75/A6 HM5257805B-75/A6 HM5257405B-75/A6 512M LVTTL interface SDRAM 133 MHz/100 MHz 8-Mword × 16-bit × 4-bank/16-Mword × 8-bit × 4-bank /32-.
