EN25QE80A - 8 Megabit 3V Serial Flash Memory

Eon Silicon Solution

📥 Download Datasheet

EN25QE80A Datasheet Preview — Preview of EN25QE80A PDF

Datasheet Details

Part number	EN25QE80A
Manufacturer	Eon Silicon Solution
File Size	1.67 MB
Description	8 Megabit 3V Serial Flash Memory
Datasheet	EN25QE80A-EonSiliconSolution.pdf

EN25QE80A Product details

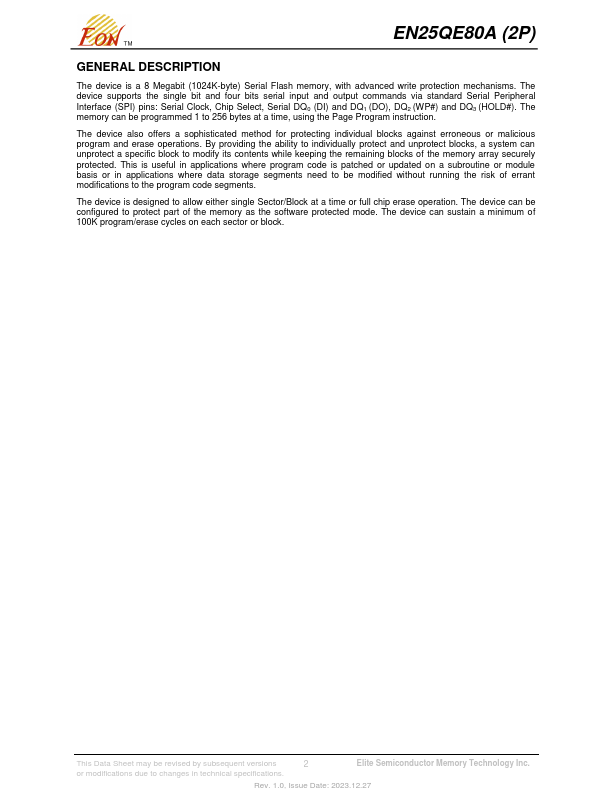

Description

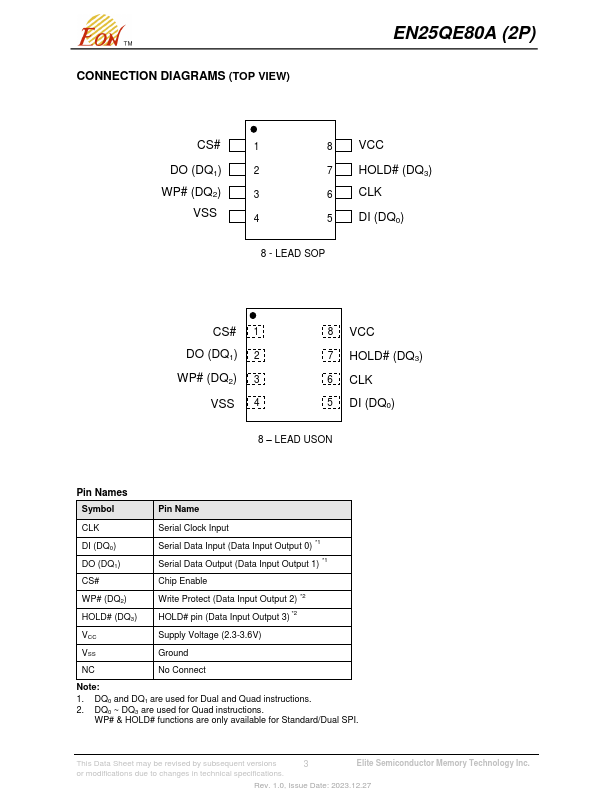

preliminary The device is a 8 Megabit (1024K-byte) Serial Flash memory, with advanced write protection mechanisms.The device supports the single bit and four bits serial input and output commands via standard Serial Peripheral Interface (SPI) pins: Serial Clock, Chip Select, Serial DQ0 (DI) and DQ1 (DO), DQ2 (WP#) and DQ3 (HOLD#).The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction.The device also offers a sophisticated method for protecting individual

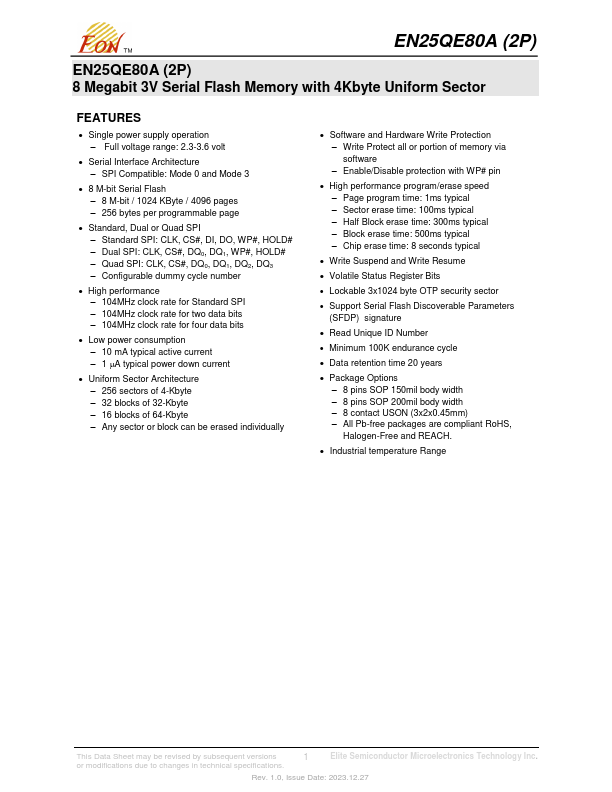

Features

Single power supply operation.
Full voltage range: 2.3-3.6 volt.
Serial Interface Architecture.
SPI Compatible: Mode 0 and Mode 3.
8 M-bit Serial Flash.
8 M-bit / 1024 KByte / 4096 pages.
256 bytes per programmable page.
Standard, Dual or Quad SPI.
Standard SPI: CLK, CS#, DI, DO, WP#, HOLD#.
Dual SPI: CLK, CS#, DQ0, DQ1, WP#, HOLD#.
Quad SPI: CLK, CS#, DQ0, DQ1, DQ2, DQ3.
Configurable dummy cycle number.
