EN25S40 Datasheet - Eon Silicon Solution

EN25S40 - 4 Megabit 1.8V Serial Flash Memory

The EN25S40 is a 4 Megabit (512K-byte) Serial Flash memory, with advanced write protection mechanisms.

The EN25S40 supports the standard Serial Peripheral Interface (SPI), and a high performance Dual output as well as Dual I/O using SPI pins: Serial Clock, Chip Select, Serial DQ0(DI), DQ1(DO), WP# a

EN25S40 Features

* Single power supply operation - Full voltage range: 1.65-1.95 volt

* Serial Interface Architecture - SPI Compatible: Mode 0 and Mode 3

* 4 M-bit Serial Flash - 4 M-bit/512 K-byte/2048 pages - 256 bytes per programmable page

* Standard or Dual SPI - Standard SPI: CLK

EN25S40_EonSiliconSolution.pdf

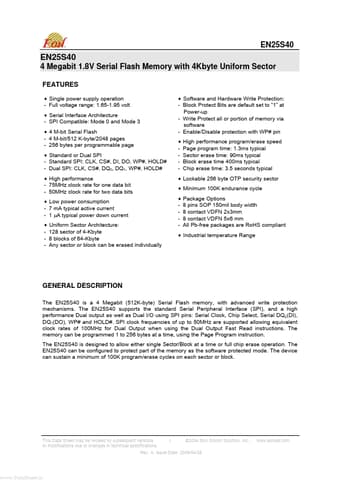

Preview of EN25S40 PDF
EN25S40 Datasheet Preview Page 2 EN25S40 Datasheet Preview Page 3

Datasheet Details

Part number:

EN25S40

Manufacturer:

Eon Silicon Solution

File Size:

629.26 KB

Description:

4 megabit 1.8v serial flash memory.
