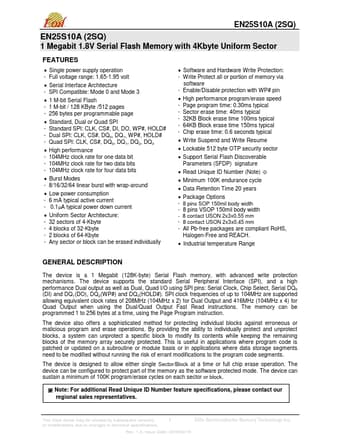

EN25S10A-2SQ - 1 Megabit 1.8V Serial Flash Memory

EON

Datasheet Details

Part number	EN25S10A-2SQ
Manufacturer	EON
File Size	1.56 MB
Description	1 Megabit 1.8V Serial Flash Memory
Datasheet	EN25S10A-2SQ-EON.pdf

Single power supply operation - Full voltage range: 1.65-1.95 volt.
Serial Interface Architecture - SPI Compatible: Mode 0 and Mode 3.
1 M-bit Serial Flash - 1 M-bit / 128 KByte /512 pages - 256 bytes per programmable page.
Standard, Dual or Quad SPI - Standard SPI: CLK, CS#, DI, DO, WP#, HOLD# - Dual SPI: CLK, CS#, DQ0, DQ1, WP#, HOLD# - Quad SPI: CLK, CS#, DQ0, DQ1, DQ2, DQ3.
High performance - 104MHz clock rate for one data bit - 104MHz clock rate for two data bits -.
