EN25S80

8 Megabit 1.8V Serial Flash Memory

EN25S80 Features

* Single power supply operation - Full voltage range: 1.65-1.95 volt

* Serial Interface Architecture - SPI Compatible: Mode 0 and Mode 3

* 8 M-bit Serial Flash - 8 M-bit/1024 K-byte/4096 pages - 256 bytes per programmable page

* Standard or Dual SPI - Standard SPI: CL

EN25S80 General Description

The EN25S80 is an 8 Megabit (1024K-byte) Serial Flash memory, with advanced write protection mechanisms. The EN25S80 supports the standard Serial Peripheral Interface (SPI), and a high performance Dual output as well as Dual I/O using SPI pins: Serial Clock, Chip Select, Serial DQ0(DI) and DQ1(DO). .

EN25S80 Datasheet (639.21 KB)

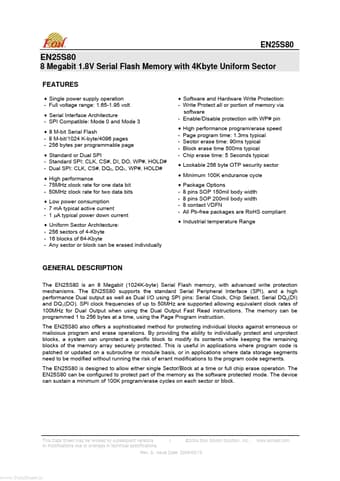

Preview of EN25S80 PDF

Datasheet Details

Part number:

EN25S80

Manufacturer:

Eon Silicon Solution

File Size:

639.21 KB

Description:

8 megabit 1.8v serial flash memory.
