S1C63616 4-bit Single Chip Microcontroller

The S1C63616 is a microcomputer which has a 4-bit CPU S1C63000 as the core CPU, ROM (16,384 words × 13 bits), RAM (2,048 words × 4 bits), multiply-divide circuit, serial interface, watchdog timer, programmable timer, time base counters (2 systems), a dot matrix LCD driver that can drive a maximum 1,.

S1C63616 Features

* low current consumption, this makes it suitable for battery driven clocks and watches with temperature and humidity measurement functions.

* FEATURES OSC1 oscillation circuit OSC3 oscillation circuit Instruction set Instruction execution time ROM capacity RAM capacity I/O port 32.768 kHz (T

S1C63616 Datasheet (156.75 KB)

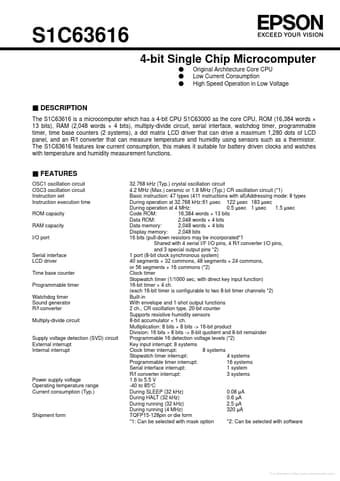

S1C63616 Datasheet Preview — Preview of S1C63616 PDF

Datasheet Details

Part number:

S1C63616

Manufacturer:

Epson

File Size:

156.75 KB

Description:

4-bit single chip microcontroller.
