S1C63656 - 4-bit Single Chip Microcontroller

Epson

The S1C63656 by Epson is a 4-bit Single Chip Microcontroller. Below is the official datasheet preview.

📥 Download Datasheet

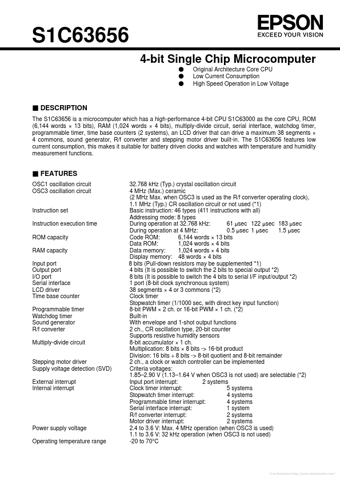

S1C63656 4-bit Single Chip Microcontroller by Epson - Datasheet Preview — Official preview page of the **S1C63656** 4-bit Single Chip Microcontroller datasheet (Epson).

Datasheet Details

Part number	S1C63656
Manufacturer	Epson
File Size	158.49 KB
Description	4-bit Single Chip Microcontroller
Datasheet	S1C63656_Epson.pdf
Additional preview pages of the S1C63656 datasheet.

S1C63656 Product details

Description

The S1C63656 is a microcomputer which has a high-performance 4-bit CPU S1C63000 as the core CPU, ROM (6,144 words × 13 bits), RAM (1,024 words × 4 bits), multiply-divide circuit, serial interface, watchdog timer, programmable timer, time base counters (2 systems), an LCD driver that can drive a maximum 38 segments × 4 commons, sound generator, R/f converter and stepping motor driver built-in.

Features

SC1 oscillation circuit OSC3 oscillation circuit 32.768 kHz (Typ. ) crystal oscillation circuit 4 MHz (Max. ) ceramic (2 MHz Max. when OSC3 is used as the R/f converter operating clock), 1.1 MHz (Typ. ) CR oscillation circuit or not used (.
1) Basic instruction: 46 types (411 instructions with all) Addressing mode: 8 types During operation at 32.768 kHz: 61 μsec 122 μsec 183 μsec During operation at 4 MHz: 0.5 μsec 1 μsec 1.5 μsec Code ROM: 6,144 words × 13 bits Data ROM: 1,024 words × 4 bits Da.
