S1C63632 - 4-bit Single Chip Microcontroller

Epson

The S1C63632 by Epson is a 4-bit Single Chip Microcontroller. Below is the official datasheet preview.

📥 Download Datasheet

S1C63632 4-bit Single Chip Microcontroller by Epson - Datasheet Preview — Official preview page of the **S1C63632** 4-bit Single Chip Microcontroller datasheet (Epson).

Datasheet Details

Part number	S1C63632
Manufacturer	Epson
File Size	135.65 KB
Description	4-bit Single Chip Microcontroller
Datasheet	S1C63632_Epson.pdf

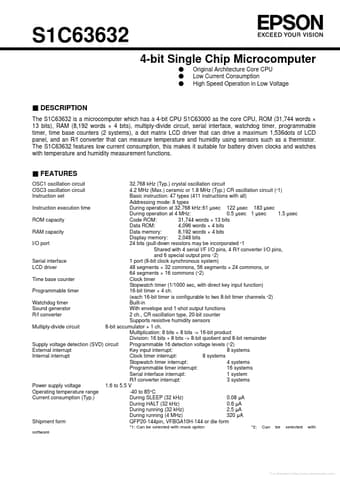

Additional preview pages of the S1C63632 datasheet.

S1C63632 Product details

Description

The S1C63632 is a microcomputer which has a 4-bit CPU S1C63000 as the core CPU, ROM (31,744 words × 13 bits), RAM (8,192 words × 4 bits), multiply-divide circuit, serial interface, watchdog timer, programmable timer, time base counters (2 systems), a dot matrix LCD driver that can drive a maximum 1,536dots of LCD panel, and an R/f converter that can measure temperature and humidity using sensors such as a thermistor.

Features

32.768 kHz (Typ. ) crystal oscillation circuit 4.2 MHz (Max. ) ceramic or 1.8 MHz (Typ. ) CR oscillation circuit (.
1) Basic instruction: 47 types (411 instructions with all) Addressing mode: 8 types Instruction execution time During operation at 32.768 kHz: 61 μsec 122 μsec 183 μsec During operation at 4 MHz: 0.5 μsec 1 μsec 1.5 μsec ROM capacity Code ROM: 31,744 words × 13 bits Data ROM: 4,096 words × 4 bits RAM capacity Data memory: 8,192 words × 4 bits Display memory: 2,048 bits I/O port 24.
