S1C63657 - 4-bit Single Chip Microcontroller

Epson

The S1C63657 by Epson is a 4-bit Single Chip Microcontroller. Below is the official datasheet preview.

📥 Download Datasheet

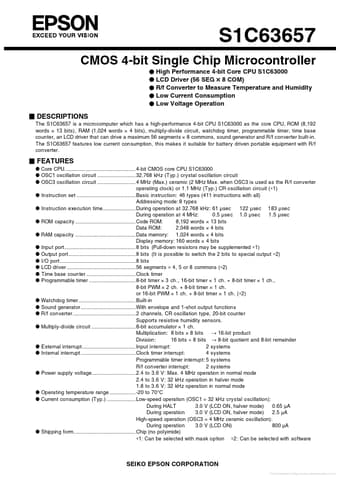

S1C63657 4-bit Single Chip Microcontroller by Epson - Datasheet Preview — Official preview page of the **S1C63657** 4-bit Single Chip Microcontroller datasheet (Epson).

Datasheet Details

Part number	S1C63657
Manufacturer	Epson
File Size	109.53 KB
Description	4-bit Single Chip Microcontroller
Datasheet	S1C63657_Epson.pdf
Additional preview pages of the S1C63657 datasheet.

S1C63657 Product details

Description

The S1C63657 is a microcomputer which has a high-performance 4-bit CPU S1C63000 as the core CPU, ROM (8,192 words × 13 bits), RAM (1,024 words × 4 bits), multiply-divide circuit, watchdog timer, programmable timer, time base counter, an LCD driver that can drive a maximum 56 segments × 8 commons, sound generator and R/f converter built-in.

Features

br>.
Core CPU 4-bit CMOS core CPU S1C63000.
OSC1 oscillation circuit 32.768 kHz (Typ. ) crystal oscillation circuit.
OSC3 oscillation circuit 4 MHz (Max. ) ceramic (2 MHz Max. when OSC3 is used as the R/f converter operating clock) or 1.1 MHz (Typ. ) CR oscillation circuit (∗1).
Instruction set Basic instruction: 46 types (411 instructions with all) Addressing mode: 8 types.
Instruction execution time During operation at 32.768 kHz: 61 μsec 122 μsec 183 μsec During operation.
