SED1330F

Graphic LCD Controller

SED1330F Features

* q 6800 and 8080 family compatibility, 2-pin programmable q Programmable cursor movement q Flexible scrolling Scrolling in both horizontal and vertical directions Scrolling of selected areas of the display q Multimode display Up to 2 layers of mixed character and graphics Up to 3 layers of graphics q

SED1330F General Description

The SED1330F is a graphics and character display controller for use with medium scale dot matrix LCDs. The SED1330F generates all the signals required by the display memory and LCD drivers, and incorporates a character generator ROM, so that flexible, low power, display systems can be designed with .

SED1330F Datasheet (179.88 KB)

Preview of SED1330F PDF

Datasheet Details

Part number:

SED1330F

Manufacturer:

Epson

File Size:

179.88 KB

Description:

Graphic lcd controller.

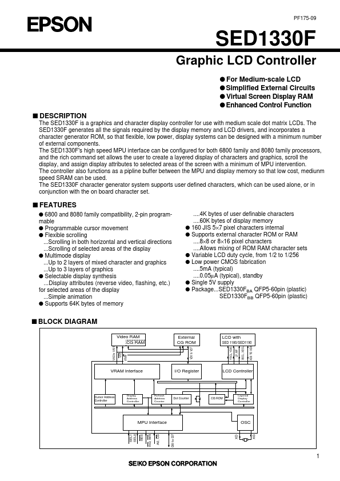

PF175-09 SED1330F Graphic LCD Controller q For Medium-scale LCD q Simplified External Circuits q Virtual Screen Display RAM q Enhanced Control Functi.
