SED1330

CMOS GRAPHIC LCD CONTROLLER

SED1330 Features

* CMOS low-power graphic and character display controller

* Selectable MPU interface is compatible with both the Intel family and the Motorola family

* Smooth scrolling support: Horizontal and vertical scroll Scrolling of selected areas of the display

* Multimode disp

SED1330 General Description

The SED1330 is a CMOS low-power dot matrix liquid crystal graphic display controller. The device stores in external RAM display data sent by an 8-bit microcomputer, and generates all the signals required by the LCD drivers. The LSI incorporates an internal character generator ROM which supports user.

SED1330 Datasheet (97.49 KB)

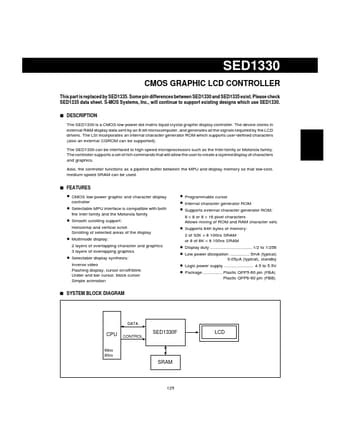

Preview of SED1330 PDF

Datasheet Details

Part number:

SED1330

Manufacturer:

EPSON

File Size:

97.49 KB

Description:

Cmos graphic lcd controller.
SED1330 CMOS GRAPHIC LCD CONTROLLER This part is replaced by SED1335. Some pin differences between SED1330 and SED1335 exist. Please check SED1335 d.
