SED1230 - LCD

Product Overview

EPSON

Datasheet Details

Part number	SED1230
Manufacturer	EPSON
File Size	223.42 KB
Description	LCD
Datasheet	SED1230 Datasheet

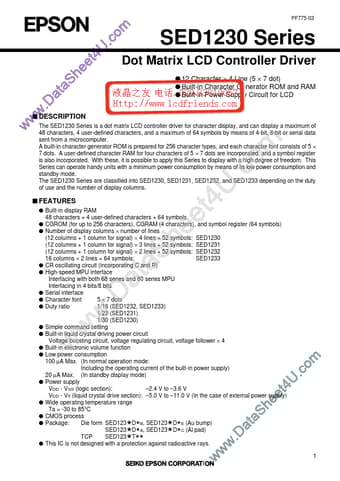

Additional preview pages of the SED1230 datasheet.

Product details

Description

w The SED1230 Series is a dot matrix LCD controller driver for character display, and can display a maximum of 48 characters, 4 user-defined characters, and a maximum of 64 symbols by means of 4-bit, 8-bit or serial data sent from a microcomputer.A built-in character generator ROM is prepared for 256 character types, and each character font consists of 5 × 7 dots.A user-defined character RAM for four characters of 5 × 7 dots are incorporated, and a symbol register is also incorporated.With th

Features

q Built-in display RAM 48 characters + 4 user-defined characters + 64 symbols q CGROM (for up to 256 characters), CGRAM (4 characters), and symbol register (64 symbols) q Number of display columns × number of lines (12 columns + 1 column for signal) × 4 lines + 52 symbols: SED1230 (12 columns + 1 column for signal) × 3 lines + 52 symbols: SED1231 (12 columns + 1 column for signal) × 2 lines + 52 symbols: SED1232 16 columns × 2 lines + 64 symbols: SED1233 q CR oscillating circuit (incorporating.
