SED1278

CMOS DOT MATRIX LCD CONTROLLER DRIVER

EPSON

SED1278 Features

* very low power dissipation. This makes the device suitable for handheld and portable applications. s FEATURES

* Low-power CMOS technology

* 40 segment output

* 16 common output

* Duty: 1/8 or 1/16 (set by command)

* 4/8-bit CPU data interface, TTL compatible

SED1278 General Description

The SED1278 is a character LCD controller-driver, capable of driving displays as large as 2 lines of 8 characters (5 × 8 pixels), with minimum external components. The SED1278 has an internal CGROM consisting of 240 characters (5 × 7) plus the underline cursor, JIS, ASCII, and eight user-programmabl.

SED1278 Datasheet (164.70 KB)

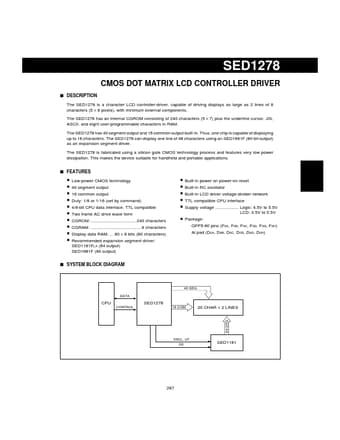

SED1278 Datasheet Preview — Preview of SED1278 PDF

Datasheet Details

Part number:

SED1278

Manufacturer:

EPSON

File Size:

164.70 KB

Description:

Cmos dot matrix lcd controller driver.
