SED1180

CMOS LCD 64-SEGMENT DRIVER

SED1180 Features

* Low-power CMOS technology

* 64-bit segment (column) driver

* High-speed 4-bit data

* Duty cycle 1/64 to 1/128

* Daisy chain enable support

* Wide range of LCD voltage

* 14V to

* 25V

* Supply voltage 5.0V ±10%

* Packa

SED1180 General Description

The SED1180 is a dot matrix LCD segment (column) driver for driving high-capacity LCD panel at duty cycles higher than 1/64. The LSI contains 64-bit shift register for display data. The display data is supplied through 4-bit bus, and serially transferred through 16 × 4 bit shift register. The displa.

SED1180 Datasheet (44.00 KB)

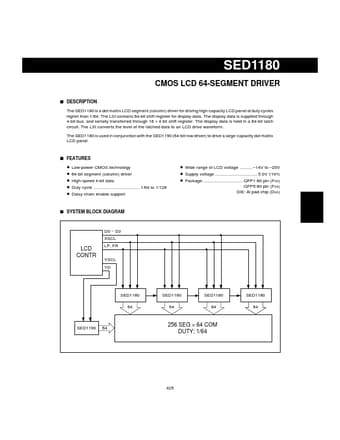

Preview of SED1180 PDF

Datasheet Details

Part number:

SED1180

Manufacturer:

EPSON

File Size:

44.00 KB

Description:

Cmos lcd 64-segment driver.
