SED1190

CMOS LCD 64-COMMON DRIVERS

SED1190 Features

* Low-power CMOS technology

* 64-bit common (row) driver

* Display blanking

* Duty cycle: 1/64 to 1/128

* Daisy chain enable support s SYSTEM BLOCK DIAGRAM

* Wide range of LCD voltage:

* 14V to

* 25V

* Supply voltage: 5.0V ±10%

SED1190 General Description

The SED1190 is a dot matrix LCD common (row) driver for driving high-capacity LCD panel at duty cycles higher than 1/64. The LSI uses two serially connected, 32-bit shift registers to hold the display data, and level shifter converts the TTL level 64-bit parallel data from the shift registers to lev.

SED1190 Datasheet (40.00 KB)

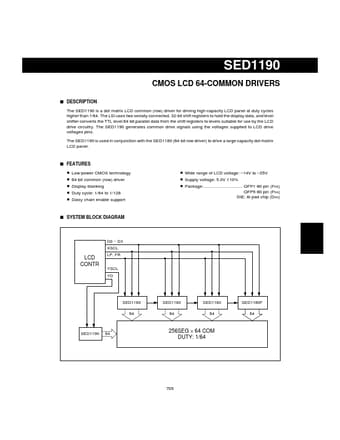

Preview of SED1190 PDF

Datasheet Details

Part number:

SED1190

Manufacturer:

EPSON

File Size:

40.00 KB

Description:

Cmos lcd 64-common drivers.
