SED1181 - CMOS LCD 64-SEGMENT DRIVER

Product Overview

EPSON

📥 Download Datasheet

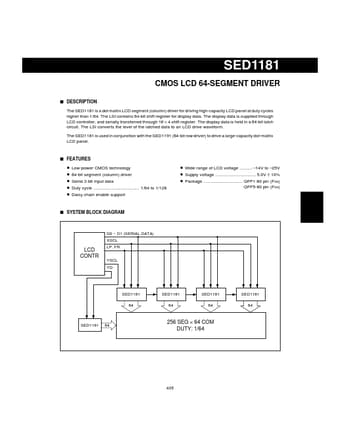

SED1181 CMOS LCD 64-SEGMENT DRIVER by EPSON - Datasheet Preview — Datasheet preview – SED1181

Datasheet Details

Part number	SED1181
Manufacturer	EPSON
File Size	32.60 KB
Description	CMOS LCD 64-SEGMENT DRIVER
Datasheet	SED1181 Datasheet
Additional preview pages of the SED1181 datasheet.

Product details

Description

The SED1181 is a dot matrix LCD segment (column) driver for driving high-capacity LCD panel at duty cycles higher than 1/64.

Features

Low-power CMOS technology.
64-bit segment (column) driver.
Serial 2-bit input data.
Duty cycle 1/64 to 1/128.
Daisy chain enable support.
Wide range of LCD voltage.
14V to.
25V.
Supply voltage 5.0V ± 10%.
Package QFP1-80 pin (F0A) QFP5-80 pin (F5A) s SYSTEM BLOCK.
