SED1336 - CMOS GRAPHIC LCD/TV CONTROLLER

Product Overview

EPSON

Datasheet Details

Part number	SED1336
Manufacturer	EPSON
File Size	78.14 KB
Description	CMOS GRAPHIC LCD/TV CONTROLLER
Datasheet	SED1336 Datasheet

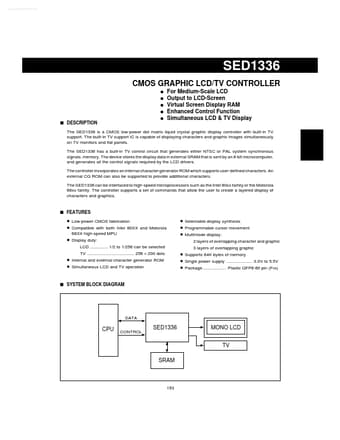

Additional preview pages of the SED1336 datasheet.

Product details

Description

CMOS GRAPHIC LCD/TV CONTROLLER For Medium-Scale LCD Output to LCD-Screen Virtual Screen Display RAM Enhanced Control Function Simultaneous LCD & TV Display The SED1336 is a CMOS low-power dot matrix liquid crystal graphic display controller with built-in TV support.The built-in TV support IC is capable of displaying characters and graphic images simultaneously on TV monitors and flat panels.The SED1336 has a built-in TV control circuit that g

Features

Low-power CMOS fabrication.
Compatible with both Intel 80XX and Motorola 68XX high-speed MPU.
Display duty: LCD 1/2 to 1/256 can be selected TV 256 × 200 dots.
Internal and external character generator ROM.
Simultaneous LCD and TV operation s SYSTEM BLOCK.
