SLA423T, SLA40000 (SLA40000 Series) High Density Gate Array

SLA423T Description

PF842-02 SLA40000 Series High Density Gate Array q Super-high-density/speed gate array q Operates on 3.3 and 3.0V power source (level shifter is pre-.

SLA423T Features

* q q q q q Super-high density (adopting 0.45µm silicon gate CMOS with 2- and 3-metal layers) High-speed operation (operation delay of internal gate = 0.160ns at 3.3V, 2-input power NAND standard) Internal gate = 3.3 and 3.0V (2.0V single), I/O buffer = 5.0, 3.3 and 3.0V (2.0V single) (built-in level

SLA423T Applications

* such as small information instrument and for image processing. To develop high-speed/high-density circuits in a shorter period of time, the series enable diverse design techniques to be used during development such as high accuracy simulation of interconnection resistance and blunted waveform in add

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SLA423T, SLA40000. Please refer to the document for exact specifications by model.

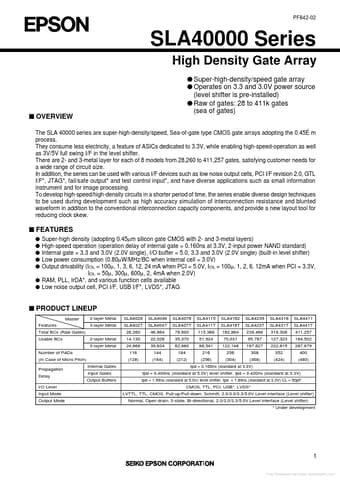

datasheet Preview Page 2

Datasheet Details

Part number
SLA423T, SLA40000
Manufacturer
Epson
File Size
58.68 KB
Datasheet
SLA40000_Epson.pdf
Description
(SLA40000 Series) High Density Gate Array
Note
This datasheet PDF includes multiple part numbers: SLA423T, SLA40000.
Please refer to the document for exact specifications by model.
