PBL40305

Multiband GSM Power Amplifier

PBL40305 Features

* One IC handles GSM900, DCS 1800 and PCS1900 bands. Low cost solution. Inputs matched to 50 Ω Digital band select function. Analog gain control. Proven GaAs MESFET-reliability. Tape and Reel. SMD QSOP 28 package.

* VD1_D

PBL40305 General Description

The PBL 403 05 is a dual line-up GaAs MMIC power amplifier intended for use in multiband GSM terminals. Powered of a 3.2V supply it delivers more than 34.5 dBm output power at GSM900 and more than 31.5 dBm output power at DCS1800 or PCS1900 frequencies. The circuit uses an analog control signal to .

PBL40305 Datasheet (97.85 KB)

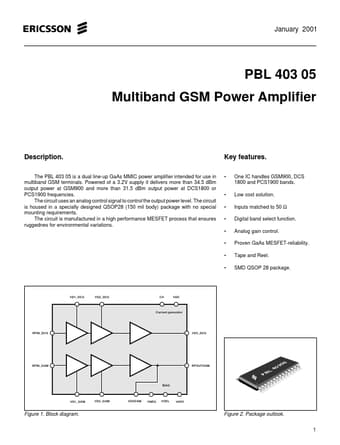

Preview of PBL40305 PDF

Datasheet Details

Part number:

PBL40305

Manufacturer:

Ericsson

File Size:

97.85 KB

Description:

Multiband gsm power amplifier.
