PBL40215, RF Transceiver circuit for the Digital Enhanced Cordless Telecommunications (DECT) system

Preliminary January 2001 PBL 402 15 PBL 402 15 RF Transceiver circuit for the Digital Enhanced Cordless Telecommunications (DECT) system .
The PBL 402 15 is a complete RF transceiver to be used in the Digital Enhanced Cordless Telecommunications ( DECT ) system.

datasheet Preview Page 1 from Datasheet4u.com

PBL40215_Ericsson.pdf

PBL40215 Datasheet Preview — Preview of PBL40215 PDF

Datasheet Details

Part number:

PBL40215

Manufacturer:

Ericsson

File Size:

214.93 KB

Description:

RF Transceiver circuit for the Digital Enhanced Cordless Telecommunications (DECT) system

Features

* High Tx output power to +7dBm
* Integrated PLL and high stability VCO´s
* 3-line serial interface bus
* Minimum 2.7 V supply voltage
* Low current consumption
* Differential Rx input and Tx output
* Flexible interface to various baseband con

Applications

* DECT Handset and base station
* Wireless local area network ( WLAN )

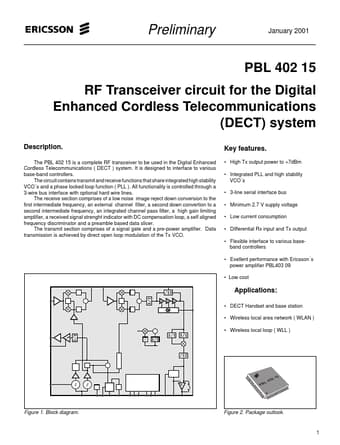

* Wireless local loop ( WLL ) PB 0 L4 5 21 Figure 1. Block diagram. Figure 2. Package outlook. 1 PBL 402 15 PA - Vcc C14 2.2nF C15 8pF GND C16 10nF C17 33pF L5 4.7nH C12 1pF MS lines 3 +in -in Vc
