Datasheet Specifications
- Part number
- EBRT8E45B
- Manufacturer
- Eris
- File Size
- 382.35 KB
- Datasheet
- EBRT8E45B-Eris.pdf
- Description
- Excellent Schottky Barrier Rectifiers
Description

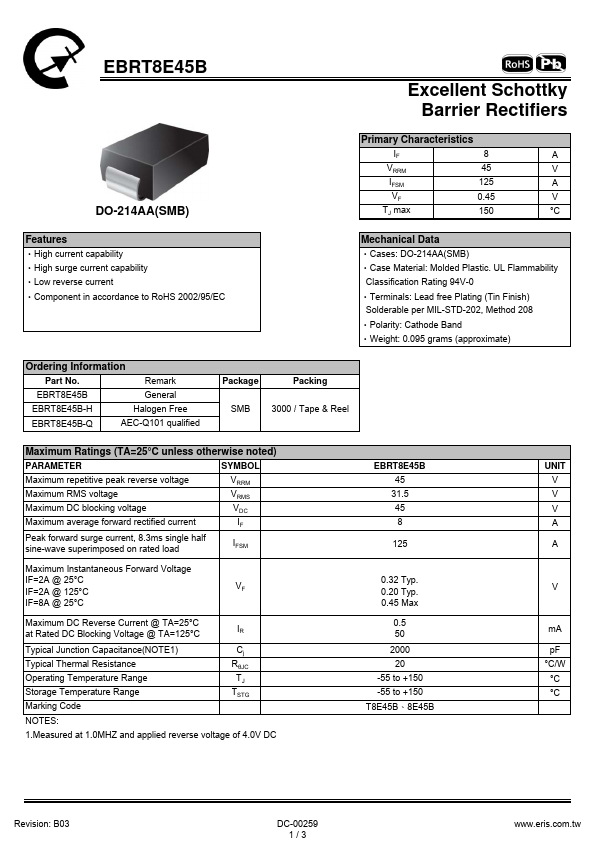

EBRT8E45B Excellent Schottky Barrier Rectifiers DO-214AA(SMB) Primary Characteristics IF 8 A VRRM 45 V IFSM 125 A VF 0.45 V TJ max 15.
Features
* ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Cases: DO-214AA(SMB) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STEBRT8E45B Distributors
