EBRT8E60B - Schottky Barrier Rectifiers

Eris

📥 Download Datasheet

EBRT8E60B Datasheet Preview — Preview of EBRT8E60B PDF

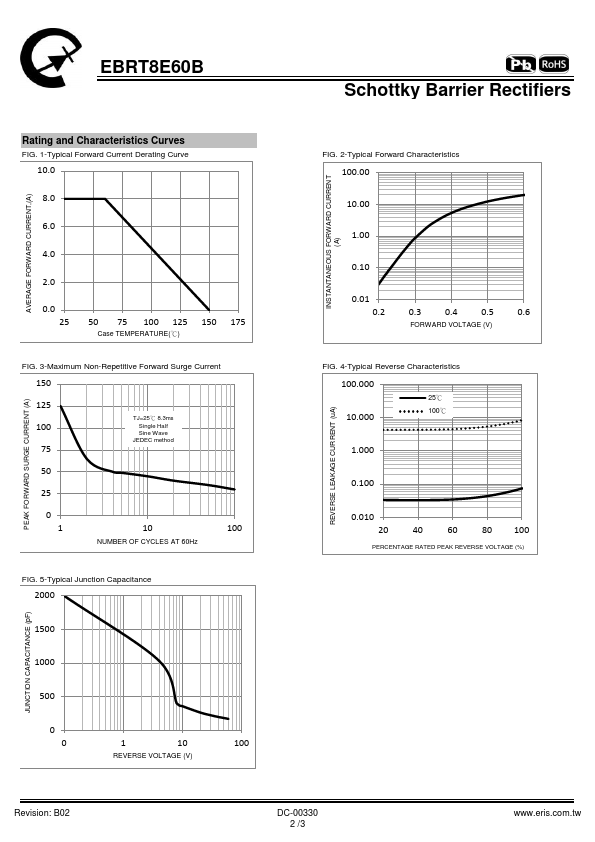

datasheet Preview Page 2

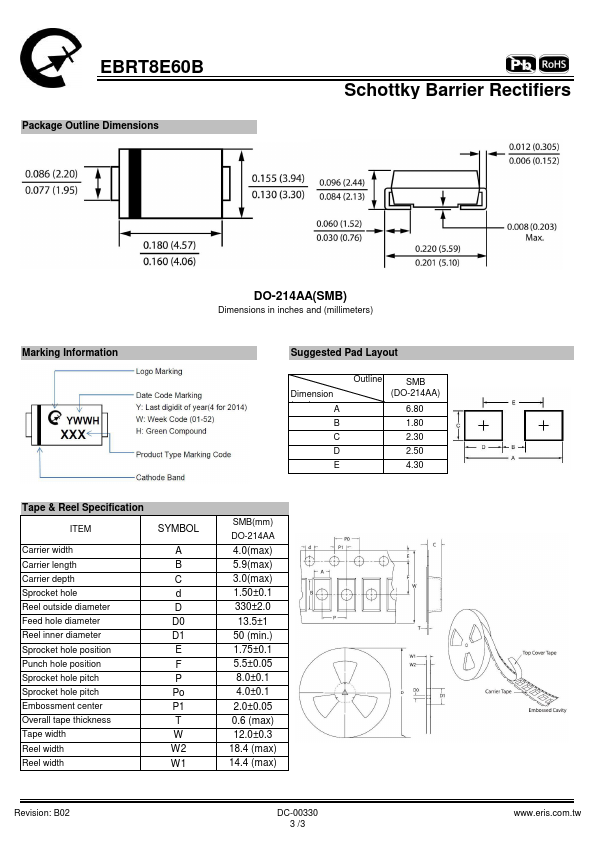

datasheet Preview Page 3

Datasheet Details

Part number	EBRT8E60B
Manufacturer	Eris
File Size	340.08 KB
Description	Schottky Barrier Rectifiers
Datasheet	EBRT8E60B-Eris.pdf

EBRT8E60B Product details

Features

‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Primary Characteristics IF 8 A VRRM 60 V IFSM 125 A VF 0.47 V TJ max 150 °C Mechanical Data ‧Case: DO-214AA(SMB) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.092 grams (approximate) Ordering Information Part No.
