Datasheet Specifications
- Part number
- SM340NH
- Manufacturer
- Eris
- File Size
- 197.25 KB
- Datasheet
- SM340NH-Eris.pdf
- Description
- Schottky Barrier Rectifiers
Description

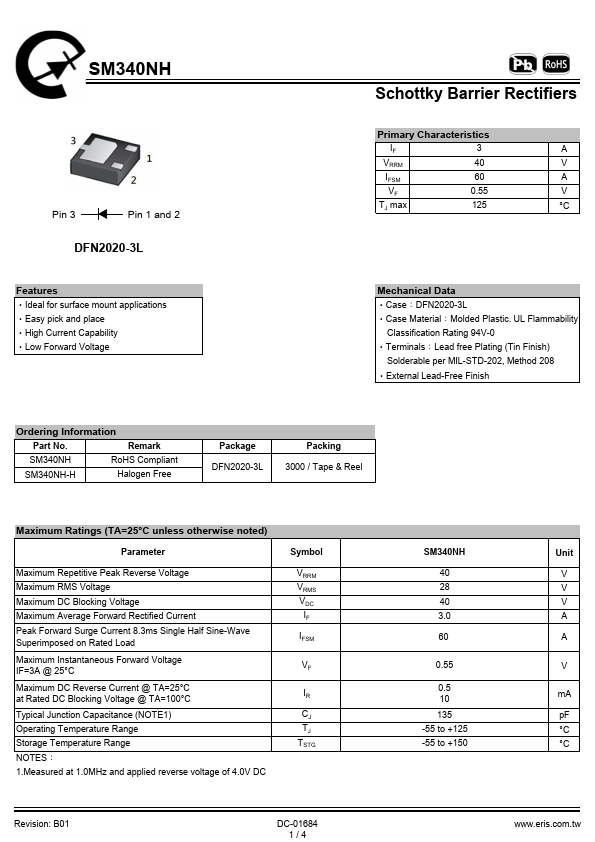

SM340NH Pin 3 Pin 1 and 2 DFN2020-3L .
Applications
* ‧Easy pick and place ‧High Current Capability ‧Low Forward Voltage Schottky Barrier Rectifiers Primary Characteristics IF 3 A VRRM 40 V IFSM 60 A VF 0.55 V TJ max 125 °C Mechanical Data ‧Case：DFN2020-3L ‧Case Material：Molded Plastic. UL Flammability Classification Rating 94V-0 ‧TerSM340NH Distributors
