SM340A, SM320A Schottky Barrier Rectifiers

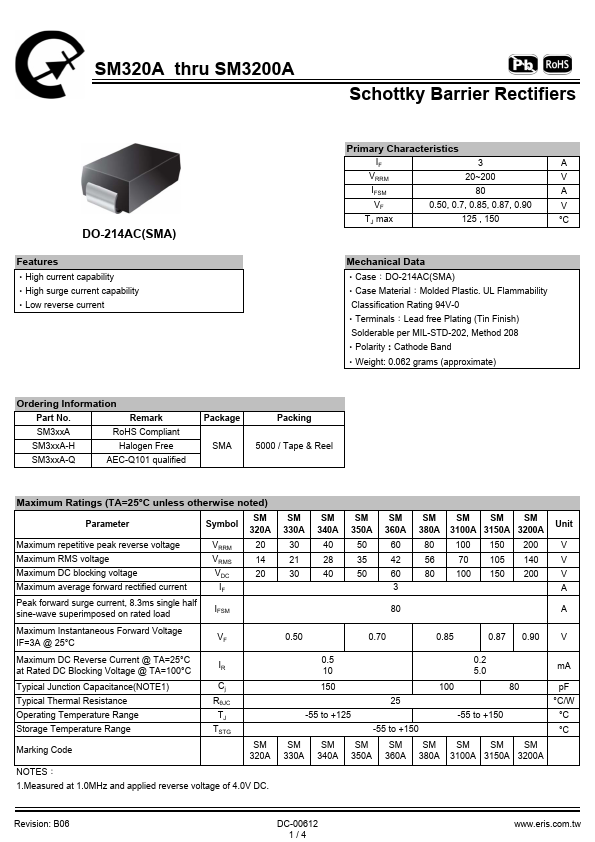

📥 Download Datasheet  Datasheet Preview Page 1

Description

SM320A thru SM3200A Schottky Barrier Rectifiers DO-214AC(SMA) .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM340A, SM320A. Please refer to the document for exact specifications by model.

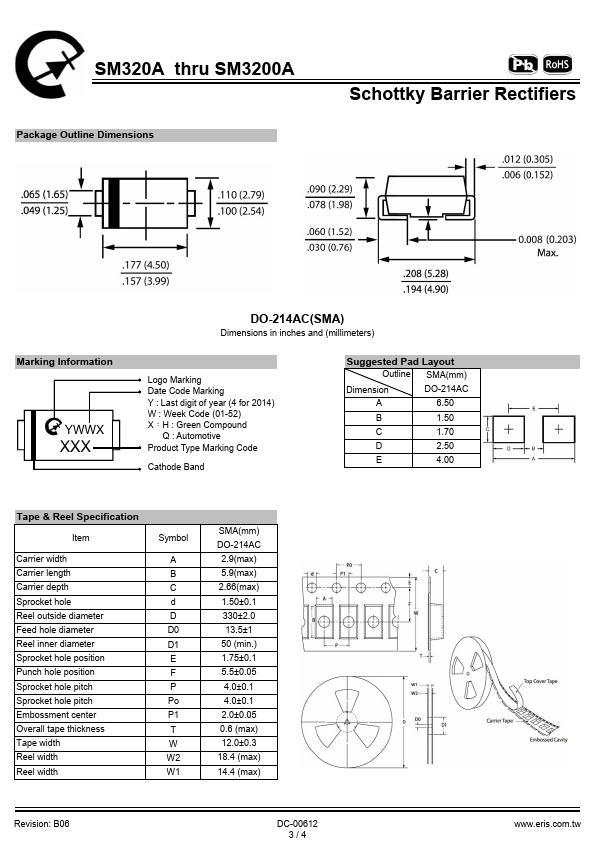

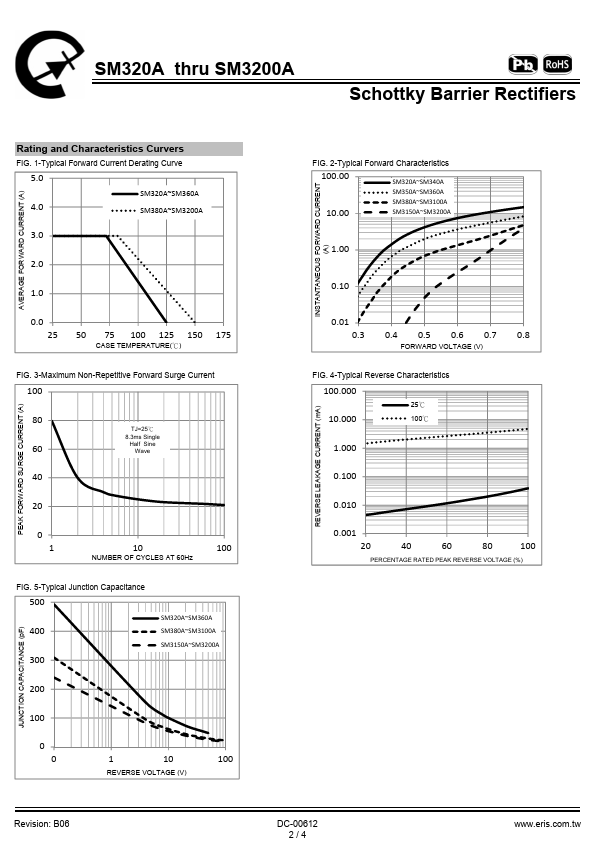

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SM340A, SM320A
Manufacturer
Eris
File Size
374.47 KB
Datasheet
SM320A-Eris.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SM340A, SM320A.
Please refer to the document for exact specifications by model.

Features

* ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Primary Characteristics IF 3 VRRM 20~200 IFSM 80 VF 0.50, 0.7, 0.85, 0.87, 0.90 TJ max 125 , 150 A V A V °C Mechanical Data ‧Cases:DO-214AC(SMA) ‧Case Material: Molded
