SM3403PSQG

P-Channel MOSFET

SM3403PSQG Features

* -20V/-95A, RDS(ON) = 4.6mW(max.) @ VGS =-4.5V RDS(ON) = 7mW(max.) @ VGS =-2.5V RDS(ON) = 10mW(max.) @ VGS =-1.8V

* Reliable and Rugged

* Lead Free and Green Devices Available (RoHS Compliant)

* HBM ESD protection level of 2.3KV typical Note : The diode connected between the gate an

SM3403PSQG General Description

DDDD SS SG DFN3.3x3.3-8 ( 5,6,7,8 ) D D DD (4) G SSS (1, 2, 3) P-Channel MOSFET Ordering and Marking Information SM3403PS SM3403PS QG : Assembly Material Handling Code Temperature Range Package Code SM 3403 XXXXX Package Code QG : DFN3.3x3.3-8 Operating Junction Temperature Range C : -55 to 150 .

SM3403PSQG Datasheet (297.16 KB)

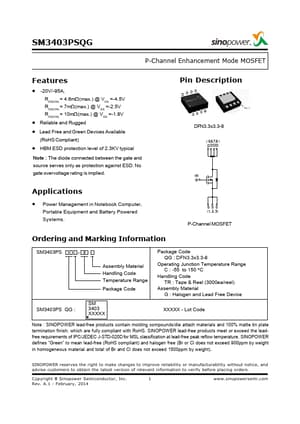

Preview of SM3403PSQG PDF

Datasheet Details

Part number:

SM3403PSQG

Manufacturer:

Sinopower

File Size:

297.16 KB

Description:

P-channel mosfet.
