SM350B, SM320B - Schottky Barrier Rectifiers

Datasheet Details

Part number	SM350B, SM320B
Manufacturer	Eris
File Size	419.17 KB
Description	Schottky Barrier Rectifiers
Datasheet	SM320B-Eris.pdf
Note	This datasheet PDF includes multiple part numbers: SM350B, SM320B. Please refer to the document for exact specifications by model.

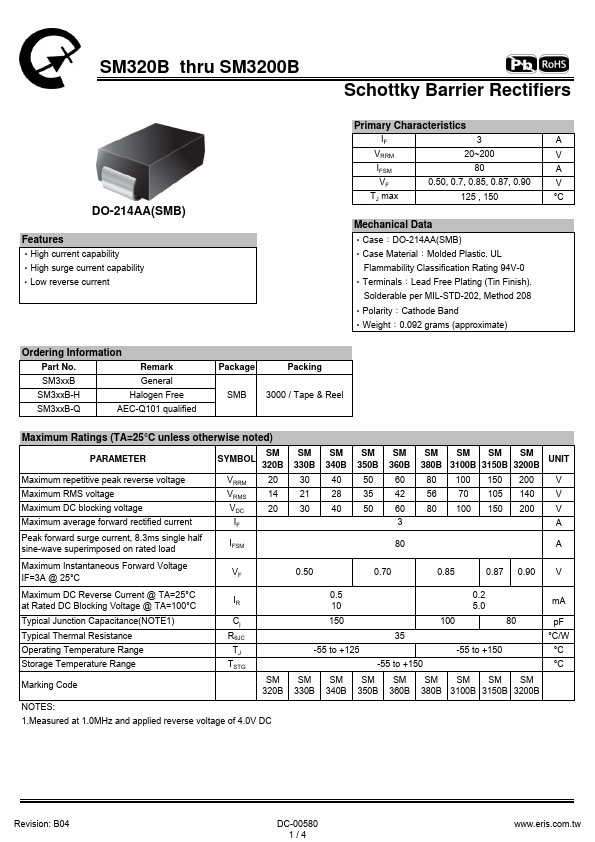

‧High current capability ‧High surge current capability ‧Low reverse current Primary Characteristics IF 3 A VRRM 20~200 V IFSM 80 A VF 0.50, 0.7, 0.85, 0.87, 0.90 V TJ max 125 , 150 °C Mechanical Data ‧Case：DO-214AA(SMB) ‧Case Material：Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals：Lead Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208 ‧Polarity：Cathode Band ‧Weight：0.092 grams (approximate) Ordering Information Part No. SM3xxB Remark G.
