SM360A, SM320A Datasheet - Eris

SM360A Schottky Barrier Rectifiers

SM360A Features

* ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Primary Characteristics IF 3 VRRM 20~200 IFSM 80 VF 0.50, 0.7, 0.85, 0.87, 0.90 TJ max 125 , 150 A V A V °C Mechanical Data ‧Cases:DO-214AC(SMA) ‧Case Material: Molded

SM320A-Eris.pdf

This datasheet PDF includes multiple part numbers: SM360A, SM320A. Please refer to the document for exact specifications by model.

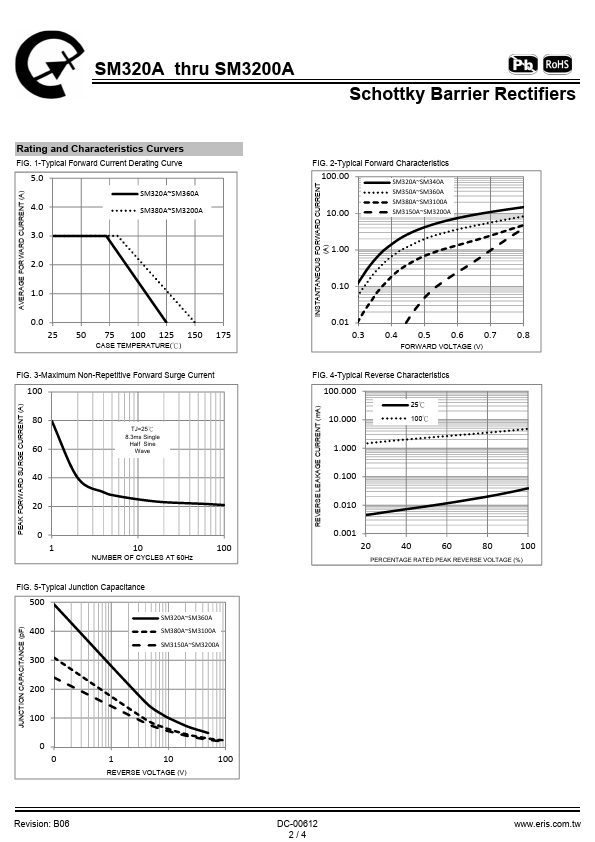

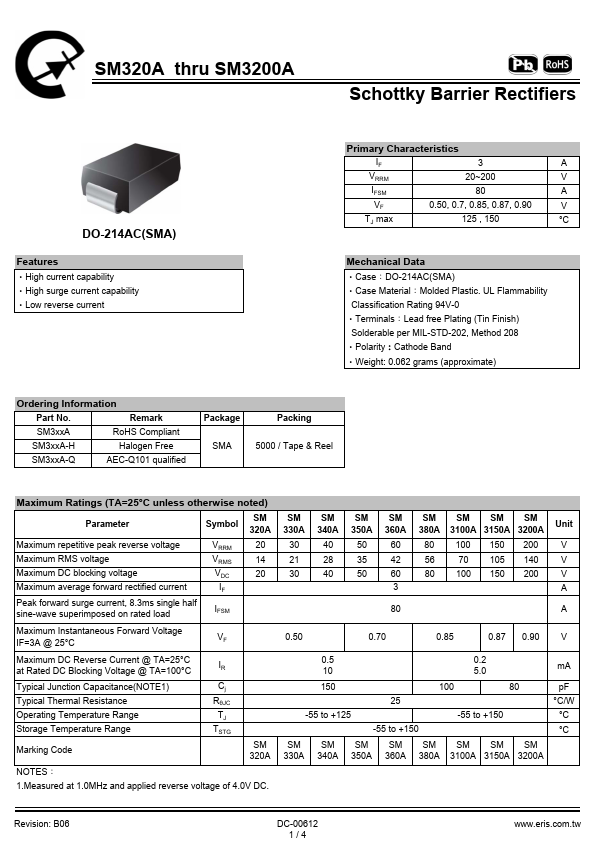

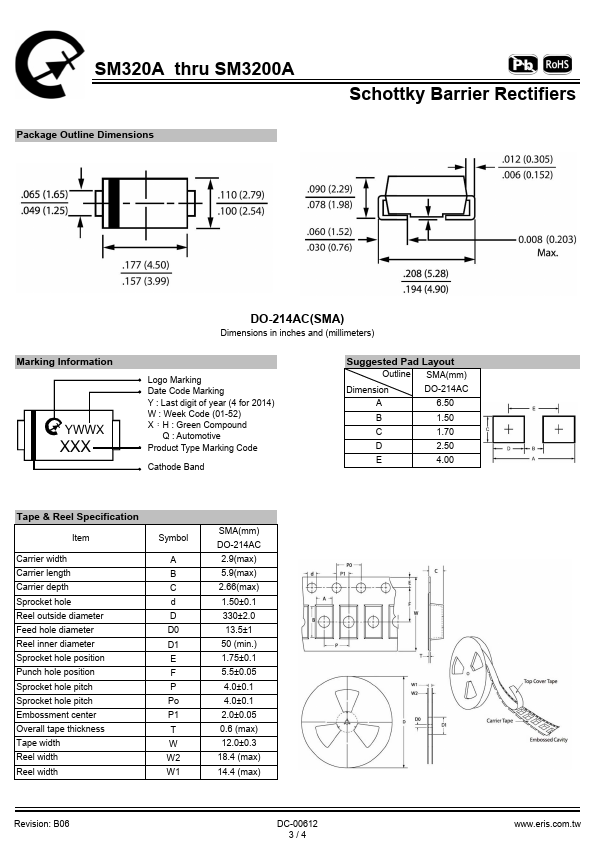

SM360A Datasheet Preview Page 2 SM360A Datasheet Preview Page 3

Datasheet Details

Part number:

SM360A, SM320A

Manufacturer:

Eris

File Size:

374.47 KB

Description:

Schottky barrier rectifiers.

Note:

This datasheet PDF includes multiple part numbers: SM360A, SM320A.
Please refer to the document for exact specifications by model.
