EM564161

256K x 16 Low Power SRAM

EM564161 Features

* Single power supply voltage of 2.3V to 3.6V

* Power down features using CE1# and CE2

* Low power dissipation

* Data retention supply voltage: 1.0V to 3.6V

* Direct TTL compatibility for all input and output

* Wide operating temperature range: -40°C t

EM564161 General Description

Symbol A0 - A17 DQ0 - DQ15 CE1#, CE2 OE# WE# LB#, UB# GND VDD NC Function Address Inputs Data Inputs / Outputs Chip Enable Inputs Output Enable Read / Write Control Input Data Byte Control Inputs Ground Power Supply No Connection Overview The EM564161 is a 4,194,304-bit SRAM organized as 262,144 w.

EM564161 Datasheet (370.92 KB)

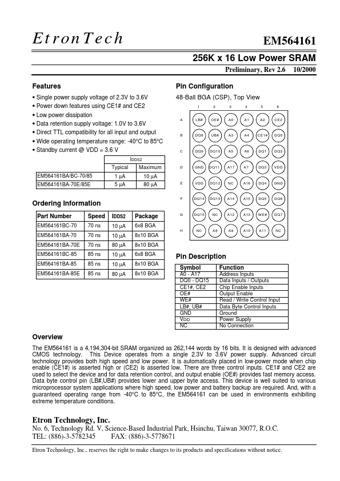

Preview of EM564161 PDF

Datasheet Details

Part number:

EM564161

Manufacturer:

Etron Technology Inc.

File Size:

370.92 KB

Description:

256k x 16 low power sram.
