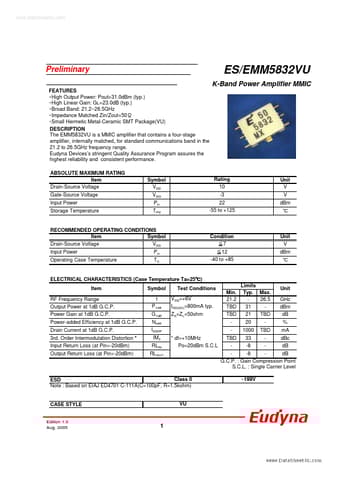

EMM5832VU Datasheet, Mmic, Eudyna Devices

EMM5832VU Features

• Mmic High Output Power: Pout=31.0dBm (typ.) High Linear Gain: GL=23.0dB (typ.) Broad Band: 21.2~26.5GHz Impedance Matched Zin/Zout=50Ω Small Hermetic Metal-Ceramic SMT Package(VU) DESCRIPTIO

PDF File Details

Part number:

EMM5832VU

Manufacturer:

Eudyna Devices

File Size:

234.64kb

Download:

📄 Datasheet

Description:

K-band power amplifier mmic. The EMM5832VU is a MMIC amplifier that contains a four-stage amplifier, internally matched, for standard communications band in the 2
