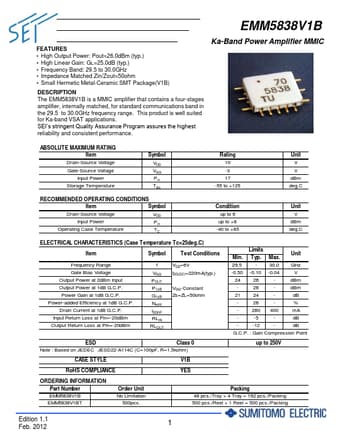

EMM5838V1B Datasheet, Mmic, SUMITOMO

EMM5838V1B Features

• Mmic
• High Output Power: Pout=26.0dBm (typ.)
• High Linear Gain: GL=25.0dB (typ.)
• Frequency Band: 29.5 to 30.0GHz
• Impedance Matched Zin/Zout=50ohm
<

PDF File Details

Part number:

EMM5838V1B

Manufacturer:

SUMITOMO

File Size:

830.49kb

Download:

📄 Datasheet

Description:

Ka-band power amplifier mmic. The EMM5838V1B is a MMIC amplifier that contains a four-stages amplifier, internally matched, for standard communications band in the

EMM5838V1B Application

• Applications SEI’s stringent Quality Assurance Program assures the highest reliability and consistent performance. Ka-Band Power Amplifier MMIC A
