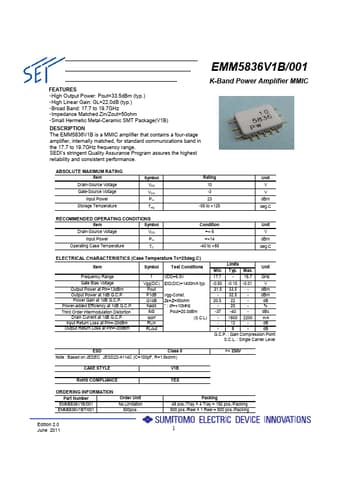

EMM5836V1B-001 Datasheet, Mmic, SUMITOMO

EMM5836V1B-001 Features

• Mmic High Output Power: Pout=33.5dBm (typ.) High Linear Gain: GL=22.0dB (typ.) Broad Band: 17.7 to 19.7GHz Impedance Matched Zin/Zout=50ohm Small Hermetic Metal-Ceramic SMT Package(V1B) DESC

PDF File Details

Part number:

EMM5836V1B-001

Manufacturer:

SUMITOMO

File Size:

398.08kb

Download:

📄 Datasheet

Description:

K-band power amplifier mmic. The EMM5836V1B is a MMIC amplifier that contains a four-stage amplifier, internally matched, for standard communications band in the

TAGS

EMM5836V1B-001

SUMITOMO
