EMM5838V1BT, EMM5838V1B - Ka-Band Power Amplifier MMIC

EMM5838V1BT Description

EMM5838V1B .
The EMM5838V1B is a MMIC amplifier that contains a four-stages amplifier, internally matched, for standard communications band in the 29.

EMM5838V1BT Features

* High Output Power: Pout=26.0dBm (typ. )
* High Linear Gain: GL=25.0dB (typ. )
* Frequency Band: 29.5 to 30.0GHz
* Impedance Matched Zin/Zout=50ohm

EMM5838V1BT Applications

* SEI’s stringent Quality Assurance Program assures the highest reliability and consistent performance. Ka-Band Power Amplifier MMIC ABSOLUTE MAXIMUM RATING Item Drain-Source Voltage Gate-Source Voltage Input Power Storage Temperature Symbol VDD VGG Pin Tstg Rating 10 -3 17 -55 to +125 Unit V V

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: EMM5838V1BT, EMM5838V1B. Please refer to the document for exact specifications by model.

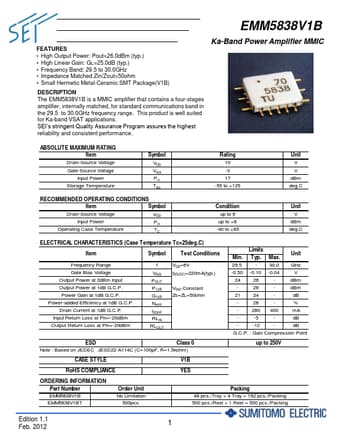

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EMM5838V1BT, EMM5838V1B
Manufacturer
SUMITOMO
File Size
830.49 KB
Datasheet
EMM5838V1B-SUMITOMO.pdf
Description
Ka-Band Power Amplifier MMIC
Note
This datasheet PDF includes multiple part numbers: EMM5838V1BT, EMM5838V1B.
Please refer to the document for exact specifications by model.
