FRM5J142GW

InGaAs-APD/Preamp Receiver

FRM5J142GW Features

* Small Form Factor Package(GW): 9 pins coplanar

* Integrated Design Optimizes Performance at Bit Rates up to 10.7Gb/s

* High Gain: 4kΩ(Single-ended), 8kΩ(Differential)

* High Sensitivity: -20dBm (typ.)

* Electrical Differential Output

* Wide Bandwidth

FRM5J142GW General Description

The FRM5J142GW incorporates a high bandwidth InGaAs PIN photo diode, a GaAs HBT IC amplifier in a hermetically sealed Small Form Factor package (SFF). The PIN is processed with modern MOVPE techniques resulting in a reliable performance over a wide range of operating conditions. The lens coupling sy.

FRM5J142GW Datasheet (346.08 KB)

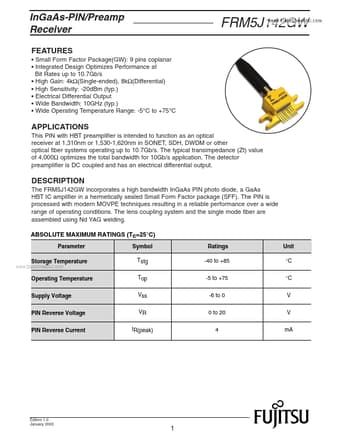

Preview of FRM5J142GW PDF

Datasheet Details

Part number:

FRM5J142GW

Manufacturer:

Eudyna Devices

File Size:

346.08 KB

Description:

Ingaas-apd/preamp receiver.
