FRM5N142GW InGaAs-APD/Preamp Receiver

Eudyna Devices

Description

InGaAs-APD/Preamp Receiver .
The FRM5N142GW incorporates a high bandwidth InGaAs APD photo diode, a GaAs HBT IC amplifier in a hermetically sealed Small Form Factor package (SFF).

📥 Download Datasheet

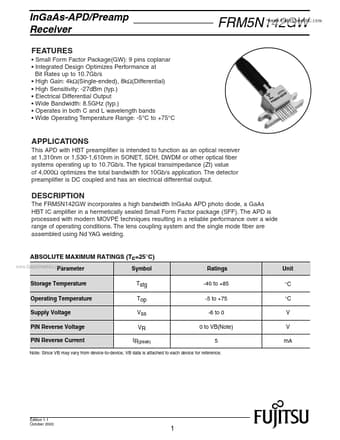

FRM5N142GW Datasheet Preview — Preview of FRM5N142GW PDF

Datasheet Specifications

Part number: FRM5N142GW
Manufacturer: Eudyna Devices
File Size: 370.75 KB
Datasheet: FRM5N142GW_EudynaDevices.pdf
Description: InGaAs-APD/Preamp Receiver

Features

* Small Form Factor Package(GW): 9 pins coplanar
* Integrated Design Optimizes Performance at Bit Rates up to 10.7Gb/s
* High Gain: 4kΩ(Single-ended), 8kΩ(Differential)
* High Sensitivity: -27dBm (typ. )
* Electrical Differential Output
* Wide Bandwidth

Applications

* This APD with HBT preamplifier is intended to function as an optical receiver at 1,310nm or 1,530-1,610nm in SONET, SDH, DWDM or other optical fiber systems operating up to 10.7Gb/s. The typical transimpedance (Zt) value of 4,000Ω optimizes the total bandwidth for 10Gb/s application. The detector pr
