FRM5N141GW InGaAs-APD/Preamp Receiver

📥 Download Datasheet  Datasheet Preview Page 1

Description

InGaAs-APD/Preamp Receiver .
The FRM5N141GW incorporates a high bandwidth InGaAs APD photo diode, a GaAs HBT IC amplifier in a hermetically sealed Small Form Factor package (SFF).

📥 Download Datasheet

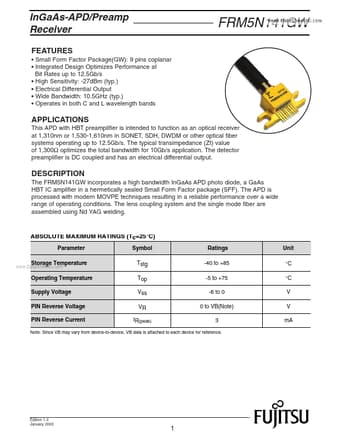

Preview of FRM5N141GW PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
FRM5N141GW
Manufacturer
Eudyna Devices
File Size
337.67 KB
Datasheet
FRM5N141GW_EudynaDevices.pdf
Description
InGaAs-APD/Preamp Receiver

Features

* Small Form Factor Package(GW): 9 pins coplanar
* Integrated Design Optimizes Performance at Bit Rates up to 12.5Gb/s
* High Sensitivity: -27dBm (typ. )
* Electrical Differential Output
* Wide Bandwidth: 10.5GHz (typ. )
* Operates in both C and L wavele

Applications

* This APD with HBT preamplifier is intended to function as an optical receiver at 1,310nm or 1,530-1,610nm in SONET, SDH, DWDM or other optical fiber systems operating up to 12.5Gb/s. The typical transimpedance (Zt) value of 1,300Ω optimizes the total bandwidth for 10Gb/s application. The detector pr
