EUP3284H - 340KHz Synchronous Step-Down Converter

Datasheet Summary

Description

The EUP3284H is a synchronous current mode buck regulator capable of driving 3A continuous load current with excellent line and load regulation.

The EUP3284H can operate with an input range 4.5V to 30V and the output can be externally set from 0.92V to 20V with a resistor divider.

Features

  • 3A Output Current Automatic Pulse Skipping Mode at Light Load Integrated 142mΩ/103mΩ DMOS Switches 4.5V to 30V Input Operating Range Output Adjustable from 0.92V to 20V Up to 94% Efficiency 3µA Shutdown Current Fixed 340KHz Frequency Programmable Soft-Start Thermal Shutdown and Overcurrent Protection Input Supply Undervoltage Lockout 220ns Minimum On Time Available in SOP-8 (EP) Package RoHS Compliant and 100% Lead(Pb)-Free Halogen-Free.

📥 Download Datasheet

Datasheet preview – EUP3284H

Datasheet Details

Part number EUP3284H
Manufacturer Eutech Microelectronics
File Size 586.89 KB
Description 340KHz Synchronous Step-Down Converter
Datasheet download datasheet EUP3284H Datasheet
Additional preview pages of the EUP3284H datasheet.

📁 Similar Datasheet

  • EUP3427 - Synchronous Step-Down Converter (Eutech)
  • EUP3618 - Charge Pump Flash LED Driver (Eutech)
  • EUP7998 - Sink/Source DDR Termination Regulator (Eutech)
  • EUP8090 - 1A Linear Li-Ion/Polymer Charger IC (Eutech)
Other Datasheets by Eutech Microelectronics
  • EUP3282H - 340KHz Synchronous Step-Down Converter
  • EUP3288 - Synchronous Step-Down Converter
  • EUP3265 - 3MHz Synchronous Step-Down DC-DC Converter
  • EUP3270 - CC/CV Mode Synchronous Step-Down Converter
  • EUP3271 - CC/CV Mode Synchronous Step-Down Converter
  • EUP3271A - CC/CV Mode Synchronous Step-Down Converter
  • EUP3290 - 2.25MHz Synchronous Step-Down DC/DC Regulator
  • EUP3291 - 2.25MHz Synchronous Step-Down DC/DC Regulator

Full PDF Text Transcription

Click to expand full text

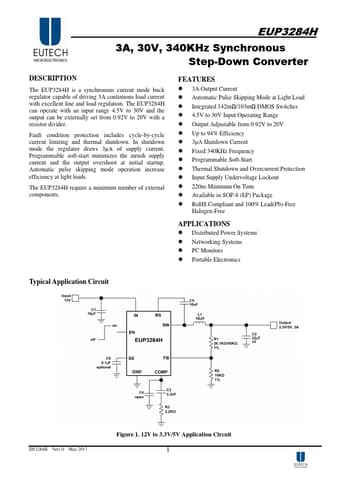

EUP3284H 3A, 30V, 340KHz Synchronous Step-Down Converter DESCRIPTION The EUP3284H is a synchronous current mode buck regulator capable of driving 3A continuous load current with excellent line and load regulation. The EUP3284H can operate with an input range 4.5V to 30V and the output can be externally set from 0.92V to 20V with a resistor divider. Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown. In shutdown mode the regulator draws 3µA of supply current. Programmable soft-start minimizes the inrush supply current and the output overshoot at initial startup. Automatic pulse skipping mode operation increase efficiency at light loads. The EUP3284H require a minimum number of external components.
